1.
Attach the four adhesive feet to the bottom of the device.
2.
Using a Phillips screwdriver, attach the wall mount brackets to the sides of the device using four
sink-head screws.

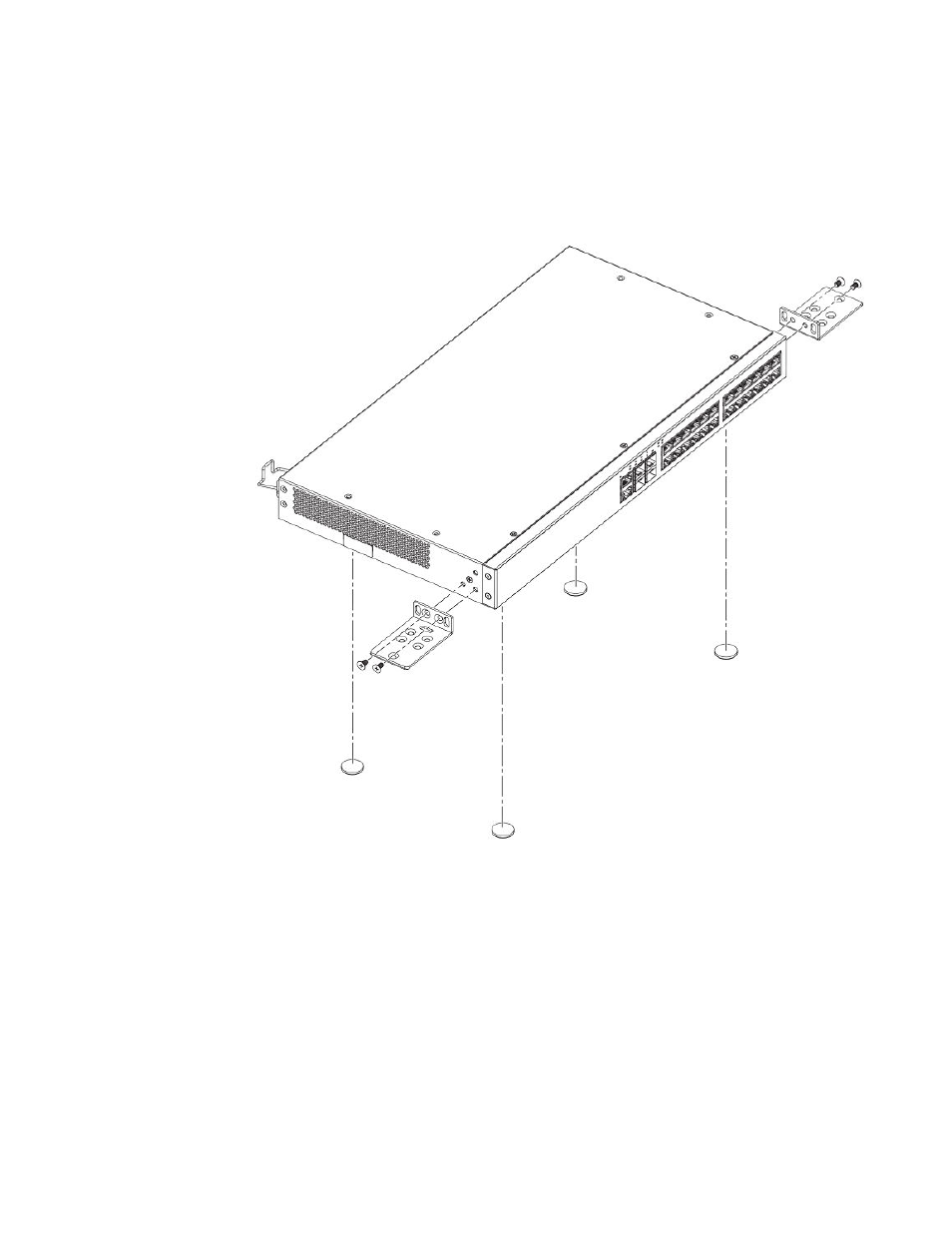

FIGURE 24 Attaching the wall mount brackets for ICX 6430-24 devices
3.
Drill two holes on the wall where you want to mount the device.
4.
Hammer two wall mount anchors into the holes on the wall.
5.
Use the two wall mount screws to fasten the device to the wall mount anchors.
ICX 6430 and ICX 6450 Installation
30
Brocade ICX 6430 and ICX 6450 Stackable Switches Hardware Installation Guide
53-1003079-01
