Parameter Setting Operations
3-19 IM 77C01E01-01E
1
2
3
4
5
A
I
3.10 Setting the “Indicator-out” Mode and Locking
Parameters
Setting the Indicator-out Mode

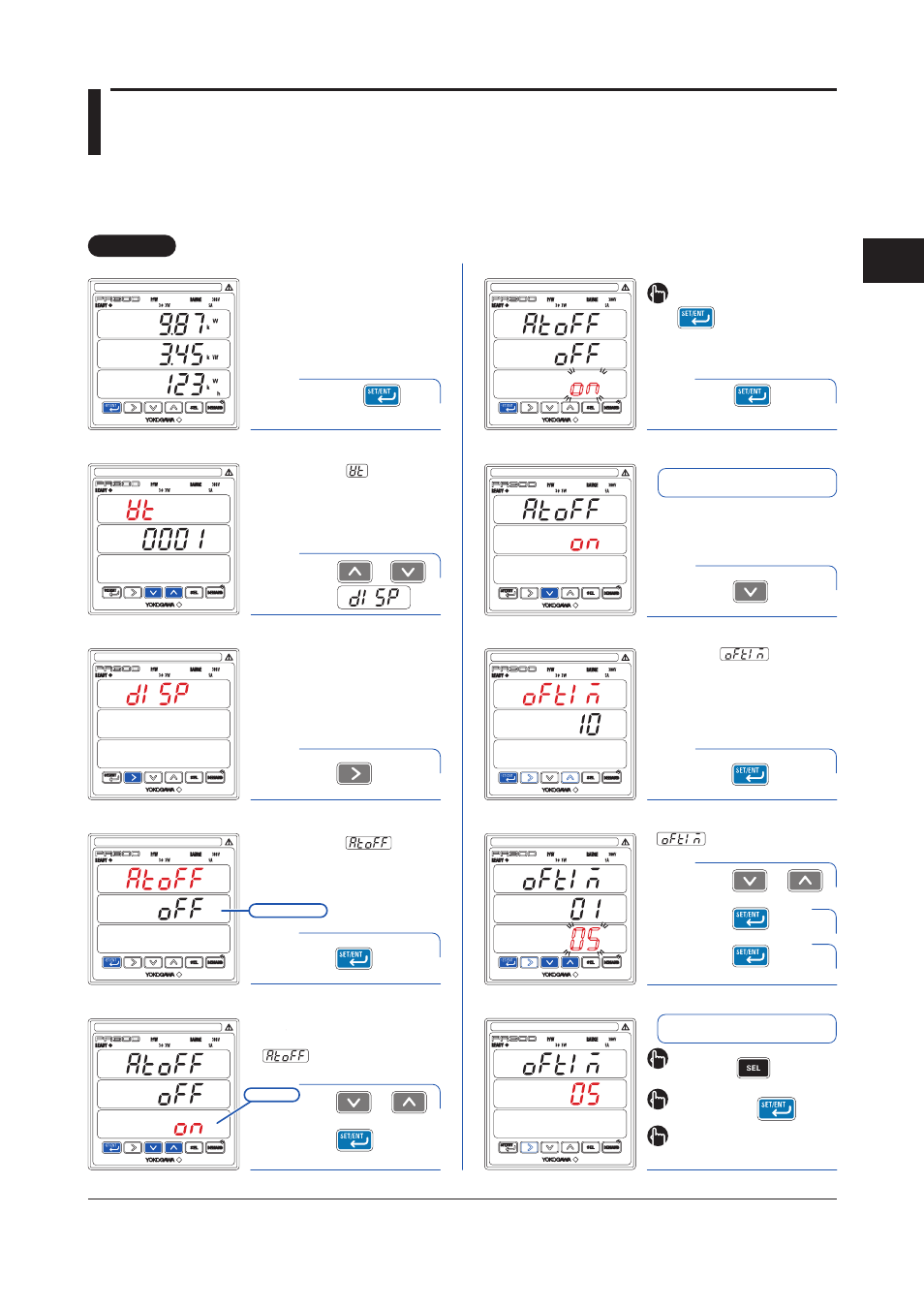

This section explains how to set the indicator-out mode by taking as an example the case when the indicator-
out mode is changed to ON and the indicator-out mode wait time to 5 min, from their respective initial values.
Operation Operation
Display Setting Menu screen
Indicator-out Mode Setting screen
Indicator-out Mode Setting screen
3
Indicator-out Mode Wait
Time screen
8
Indicator-out Mode Wait
Time Setting screen
9
Indicator-out Mode
Wait Time screen
4
6
7
5
Indicator-out Mode screen
Current value
VT Ratio screen
2
Measured Value screen
1
The parameter (VT ratio)
appears.
The screen changes to the one
for setting the parameter
.
Indicator-out Mode screen
The parameter
(Indicator-out mode) appears.
Parameter (indicator-
out mode wait time) is
displayed.
The screen changes into a
screen for setting parameter
.
Hold down for at
least 3 seconds.
Using or ,
show .
Press once.
Press once.
Using or ,
select the setpoint.
Press once blink
the setpoint.
Setpoint
Press once while
the setpoint is blinking.
The setpoint is confirmed and the PR300
returns to the Indicator-out Mode screen.
The setpoint is confirmed and the PR300 returns
to the Indicator-out Mode Wait Time screen.
Indicator-out mode setting
completed.
Indicator-out mode wait time
setting completed.
Press once.
Press once.
Using or ,
change the setpoint.
Press once to
blink the setpoint.
Press once while
the setpoint is blinking.
To return to the Display Setting Menu
screen, press .
To return to the Measured Value
screen, hold down .
If you do not operate any key for more
than 5 minutes on the Parameter
screen, the PR300 automatically
returns to the Measured Value screen.
To re-set the parameter:
Press any key other than
while all digits of the
setpoint are blinking.
The PR300 returns to the initial
setting screen.
