ANASCAN User’s Guide 45

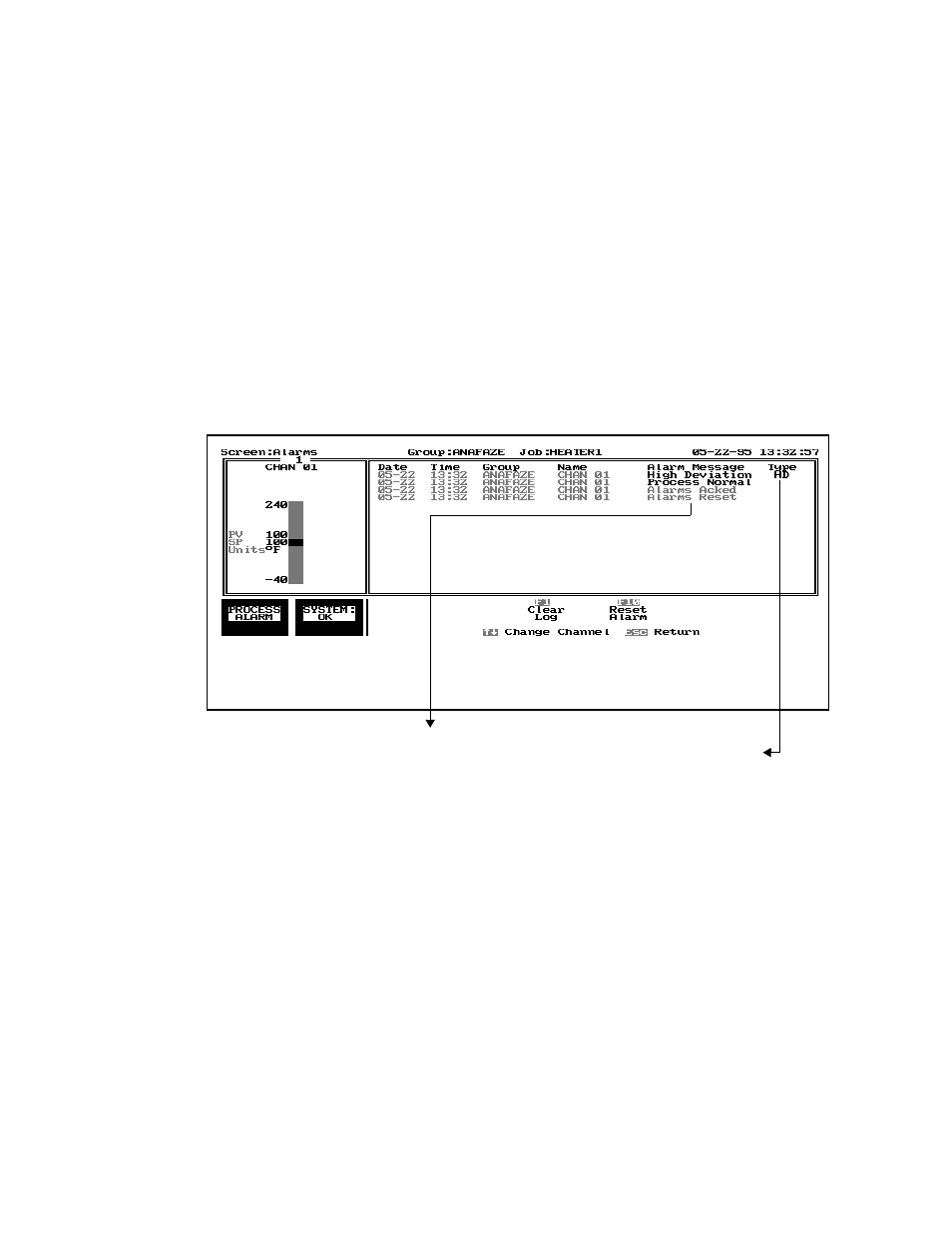

VIEW ALARMS
The View Alarms screen offers an overview on the alarm and warning
conditions by providing detailed information on when they occurred,
acknowledged, or cleared. This screen also enables you to acknowledge
the alarms and warnings.
Getting Here
Press F5 from the Overview screen.
Possible types:
HP--high process
LP--low process
HD--high deviation alarm
LD--low deviation alarm
TB--T/C Break
Four possible messages:
“Alarm Message”--alarm has occurred. You see
the message defined on the Channel Setup
screen.
Alarms Acked--alarms acknowledged from
ANASCAN.
Remote Acked--alarms acknowledged from the
CAS.
Alarms Reset--alarms reset from ANASCAN.
Remote Reset--alarms reset from the CAS.
Process Normal--alarm was cleared.
