8 ANASCAN User’s Guide
INSTALLATION

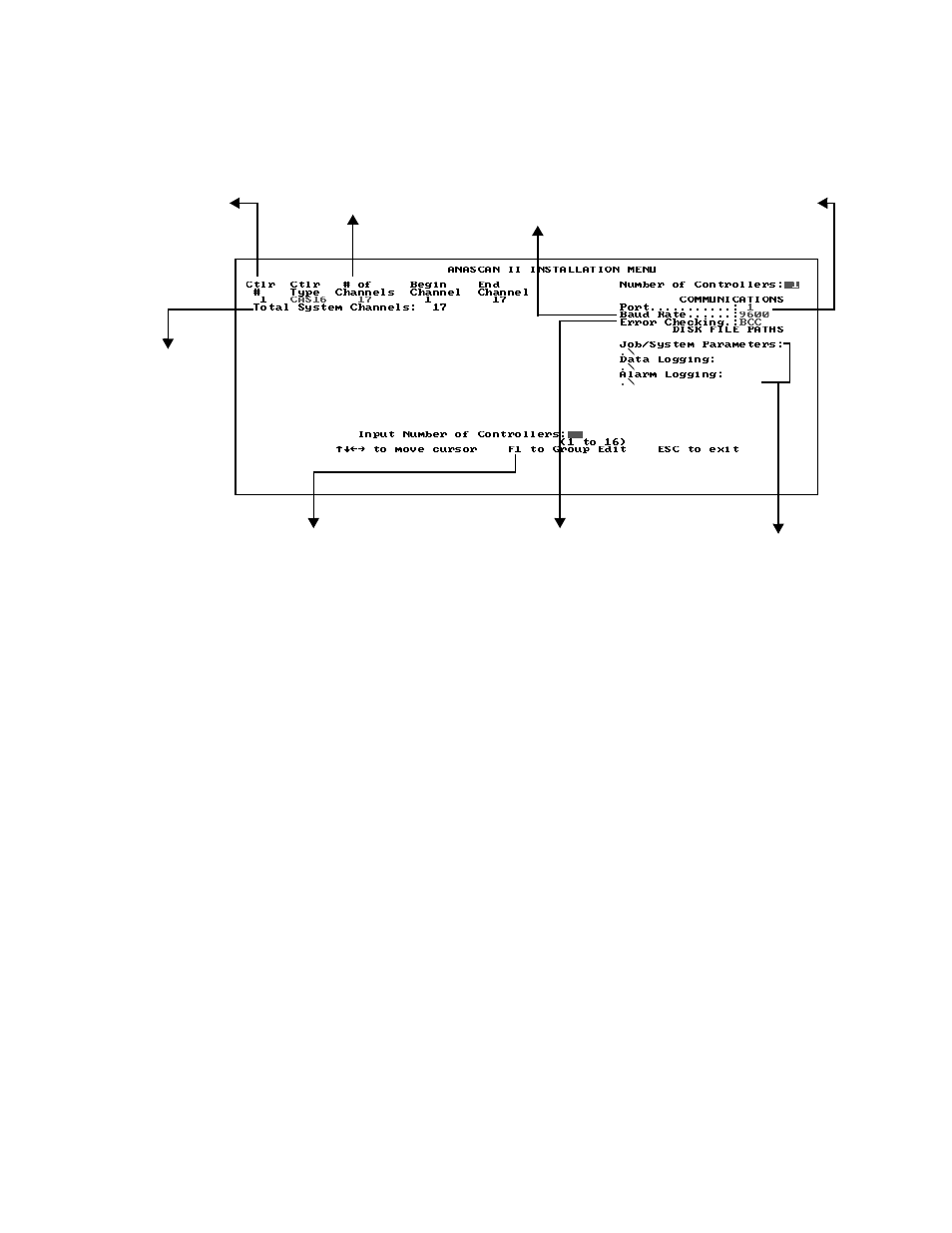

Installation Menu
Number of channels
ANASCAN displays 16 channels with system numbers. The system
channel numbers associated with the CAS channels are indicated in the
installation program as the Begin Channel and End Channel for each
scanner. A 17th channel is reserved for pulse monitoring.
Directory Paths
Job/Parameters path
This is the path to the disk directory containing the Job and System
Parameters Data Files. The path would normally be:
B:\ANASCAN\ or .\ current directory (If the system files are on drive
B)
1 to 16 This value is fixed
for the CAS The PC’s serial communications
port to the controller (can only
be 1 or 2)
Total number of
channels (this
will vary due to
the number of
CAS systems
installed)
Selects the Group Edit Screen.
See Grouping channels in this
section. Set to either BCC (Block Check
Character) or CRC (Cyclic
Redundancy Check). Use BCC
for standard applications. CRC
ensures a higher degree of secu-
rity but decreases the overall
cummunication rate. Use CRC
only when you anticipate severe
communication noise.
Select 9600 or
2400 Baud.
For these paths,
refer to the next
page
