CHANNEL SETUP
From the Channel Setup screen you can select inputs, assign channel
names, and set the ranges and functions of alarms for each single
channel display you have selected. Use this screen to change all
available channel parameters.
Watlow Anafaze recommends that you protect this screen with a
password. Use the F3 System Setup screen Password window.
Getting Here
Press F2 from the Overview screen.

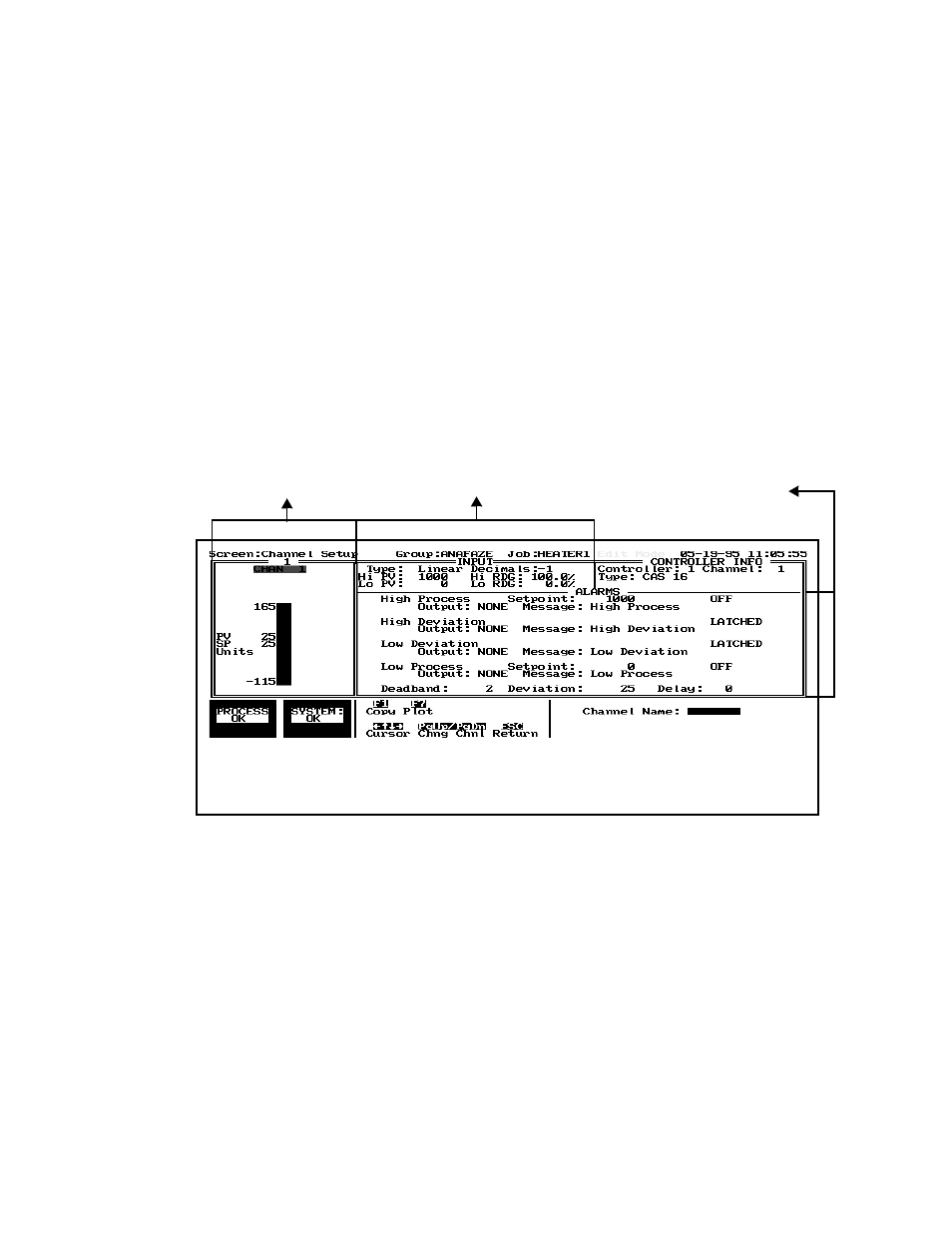

Channel Graph Display
Input Parameters
Alarm Parameters
