CHANNEL SETUP
ANASCAN User’s Guide 29

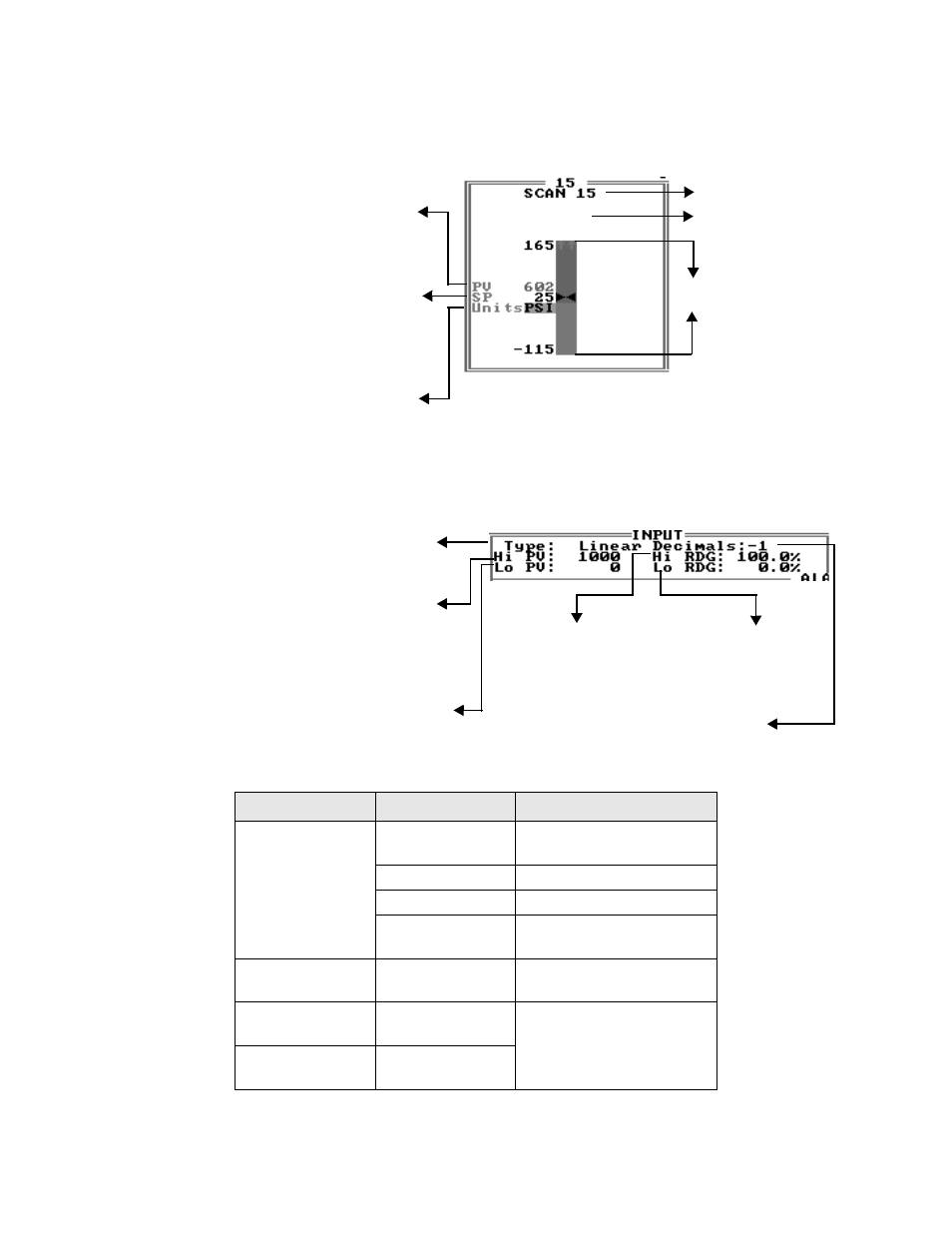

Channel Graph Display
Input Data
Field Name Selections Notes
Input Type * J, K, T, S, B, R, N,
PL-II Thermocouple inputs (refer
to table on following page)
L Linear (see description)
X Skip
Pulse (Channel 17 Only ( see
description)
PV Offset -300 to 300
Default = 0
High PV -9999 to 30000
Default = 1000
Linear and Pulse only,
Adjustable decimal
Lo PV -9999 to 30000
Default = 0
Channel title
Bar graph deviation
Process variable
Setpoint. Set to any value
between the HiPV and LoPV
of the input type. Changing
the setpoint changes deviation
alarms and warnings.
An expression of the input
type.
Alarm message
space
Input type. See table
below.
High process value.
Refers to the highest
value of the process
range in engineering
units.
Low process value. Refers
to the lowest value of the
process range in engineer-
ing units.
High reading. Sets
the highest percent-
age of input value. Low reading. Sets
the lowest percent-
age of input value.
Adjusted Decimal
(-3 to 4).
