GP-4100 Series Hardware Manual
1-4
1.2 System design

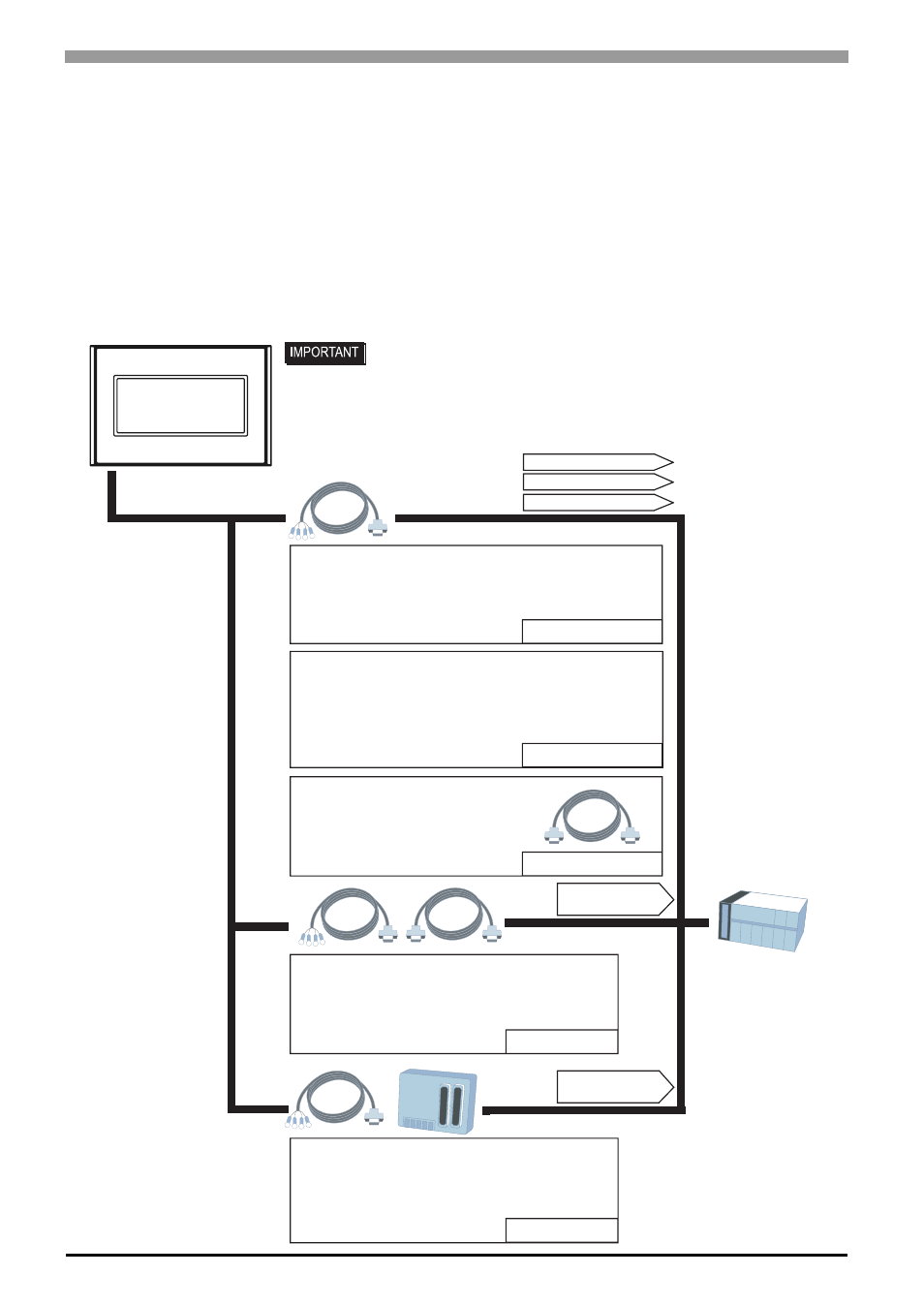

The following diagram illustrates the standard range of items that can be connected to GP-4100 Series units.
For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection
Manual”.
1.2.1 GP RUN Mode Peripherals
„Serial Communication
GP-4100 Series
Serial Interface
(COM1)
RS-422/485 type
Mitsubishi PLC Q Series CPU I/F Cable
ZC9CBQ31
Panasonic Electoric Works PLC FP Series CPU Cable
ZC9CBFP21
RS-232C Cable
(Prepared by user)
RS-232C Cable
(Prepared by user)
+
Siemens TTY Converter Cable
CA6-CBLTTY/5M-01
Mitsubishi PLC A Series Cable
ZC9CBA51
Mitsubishi PLC FX Series CPU I/F Cable
ZC9CBFX51
ZC9CBFX11
RS-422 Cable
(Prepared by user)
RS-232C type
Host Controller
PLC etc.
RS-422/485 type
RS-422 Cable
(Prepared by user)
+
Mitsubishi PLC A, QnA, FX Series’s Port Adapter II
GP070-MD11
RS-232C type
For instructions on how to connect to other devices,
always refer to the “GP-Pro EX Device/PLC Connection Manual”.
RS-422/485 Port
RS-232C Port
RS-485 (isolation) Port
Programming
Console Port
Programming
Console Port
PROFIBUS Cable
(Prepared by user)
MPI Cable
CA3-MPI-PG1-PFE
CA3-MPI-PGN-PFE
RS-485 Cable
(Prepared by user)
RS-485(isolation) type
