AFL2-W15A-N270 Panel PC

Page 39

Step 3:

Insert the device connector.

Once aligned, gently insert the USB device

connector into the onboard connector.

Step 0:

2.9.4 VGA Monitor Connection

The VGA output can be connected to an external VGA monitor. To connect the VGA

monitor to the AFL2-W15A-N270, please follow the instructions below.

Step 1:

Locate the female DB-15 connector

. The location of the female DB-15

connector is shown in Figure 2-26.

Step 2:

Align the VGA connector

. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

AFL2-W15A-N270. See Figure 2-30.

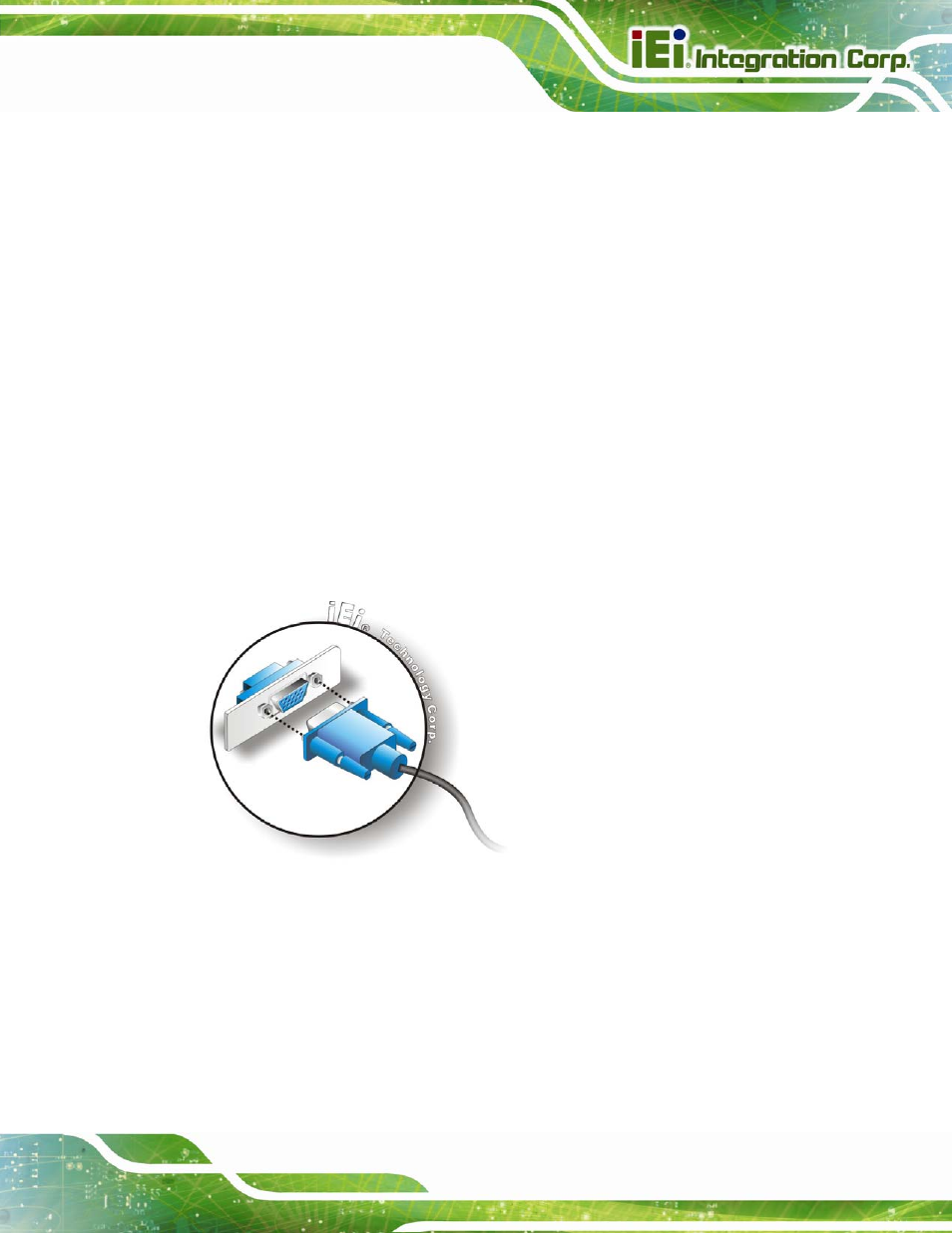

Figure 2-30: VGA Connector

Step 4:

Secure the connector

. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

Step 0:
