4 wall mounting, Figure 2-21: stand mounting (stand-a19), Figure 2-22: wall mount – IEI Integration AFL2-W15A-N270 v2.00 User Manual

Page 45

AFL2-W15A-N270 Panel PC

Page 33

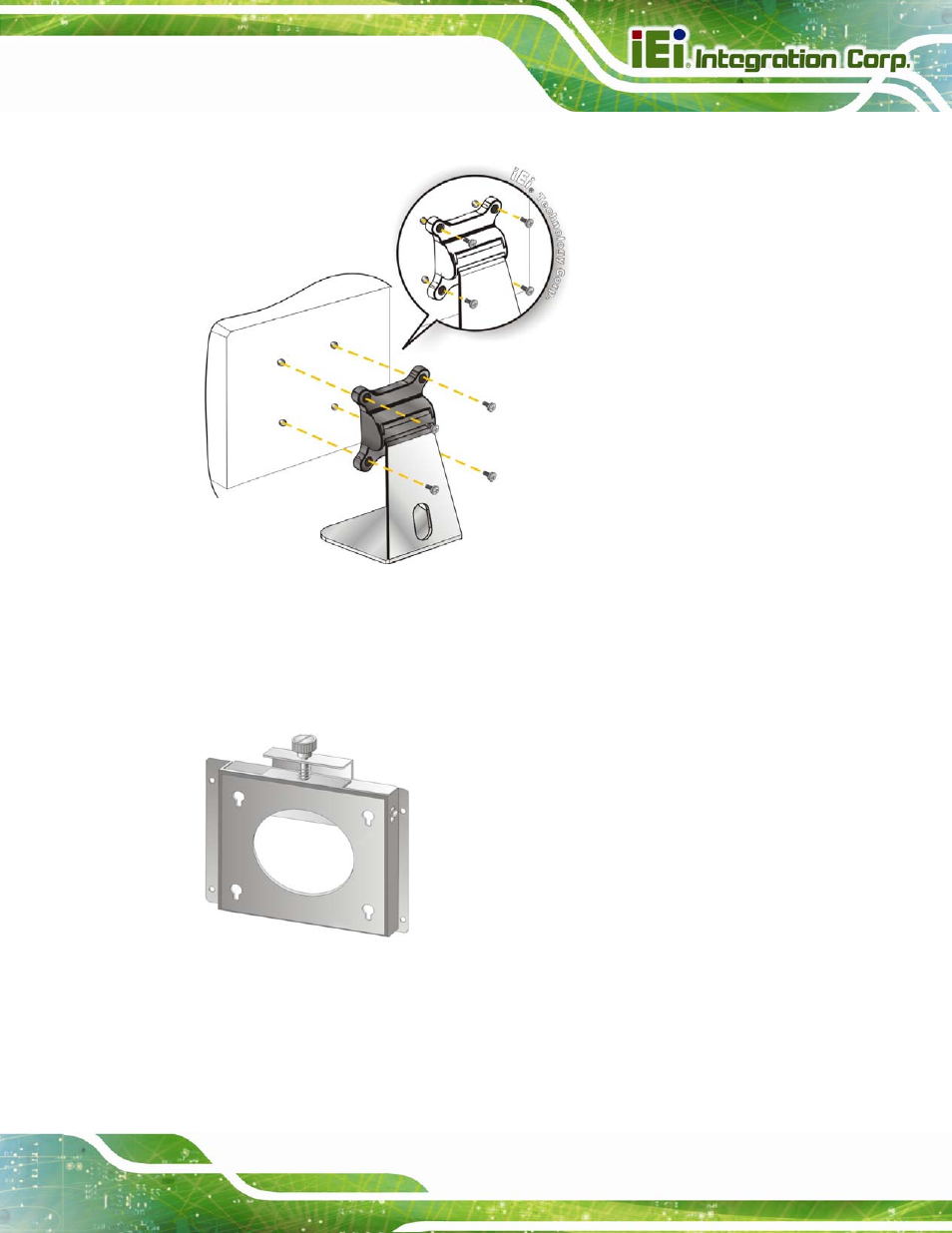

Figure 2-21: Stand Mounting (Stand-A19)

2.8.4 Wall Mounting

To mount the flat panel PC onto the wall, please follow the steps below.

Figure 2-22: Wall Mount

Step 1:

Select the location on the wall for the wall-mounting bracket.

Step 2:

Carefully mark the locations of the four brackets screw holes on the wall.
