AFL2-W15A-N270 Panel PC

Page 38

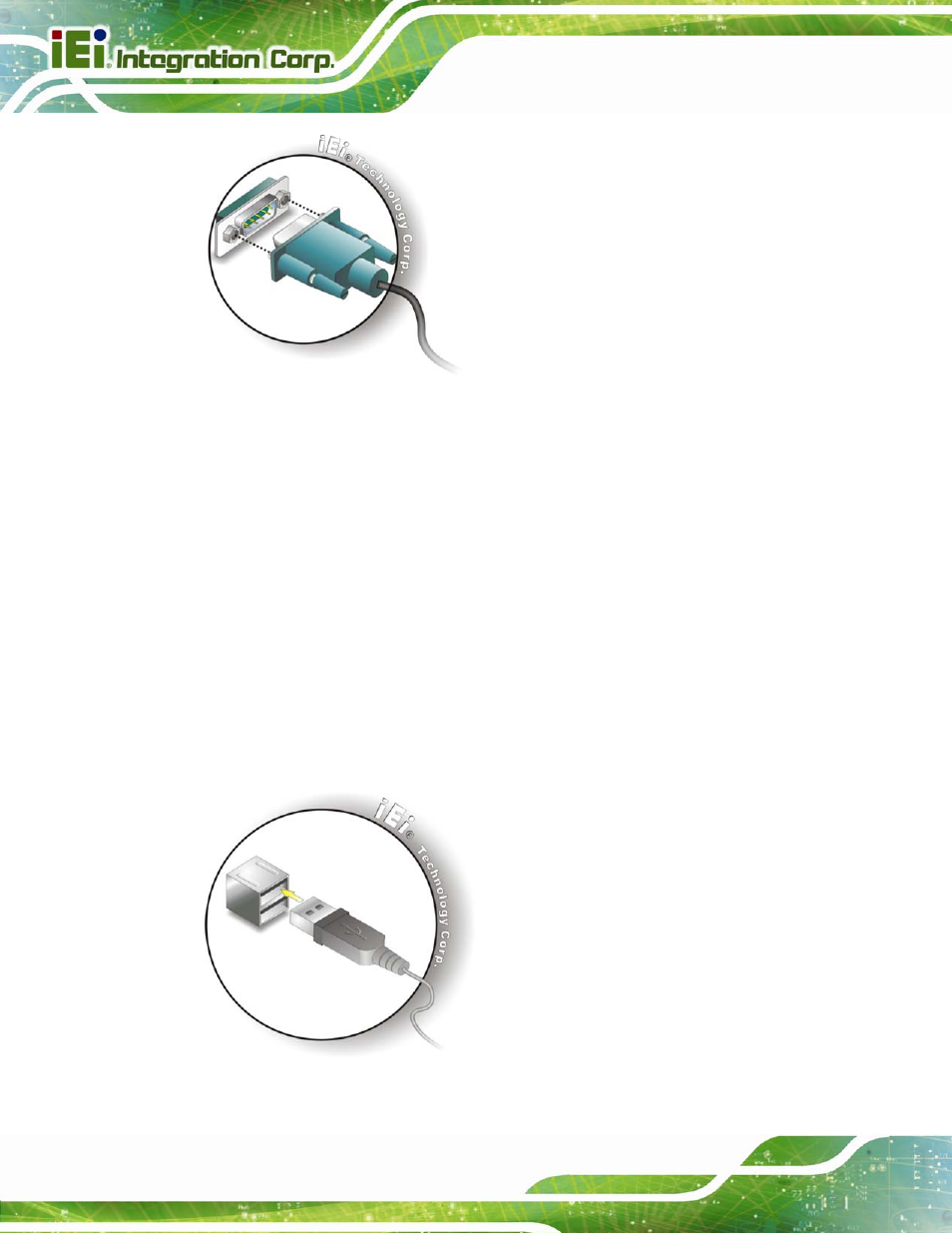

Figure 2-28: Serial Device Connector

Step 3:

Secure the connector

. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

2.9.3 USB Device Connection

To connect USB devices to the AFL2-W15A-N270, please follow the instructions below.

Step 1:

Located the USB connectors

. The locations of the USB connectors are shown

in Figure 2-26.

Step 2:

Align the connectors.

Align the USB device connector with one of the

connectors on the bottom panel. See Figure 2-29.

Figure 2-29: USB Device Connection
