AFL2-W15A-N270 Panel PC

Page 16

2.4 CompactFlash® Installation

The installation for a CompactFlash® card is described in this section.

Step 1:

Remove the access panel and brackets as described in the HDD installation

instructions.

Step 2:

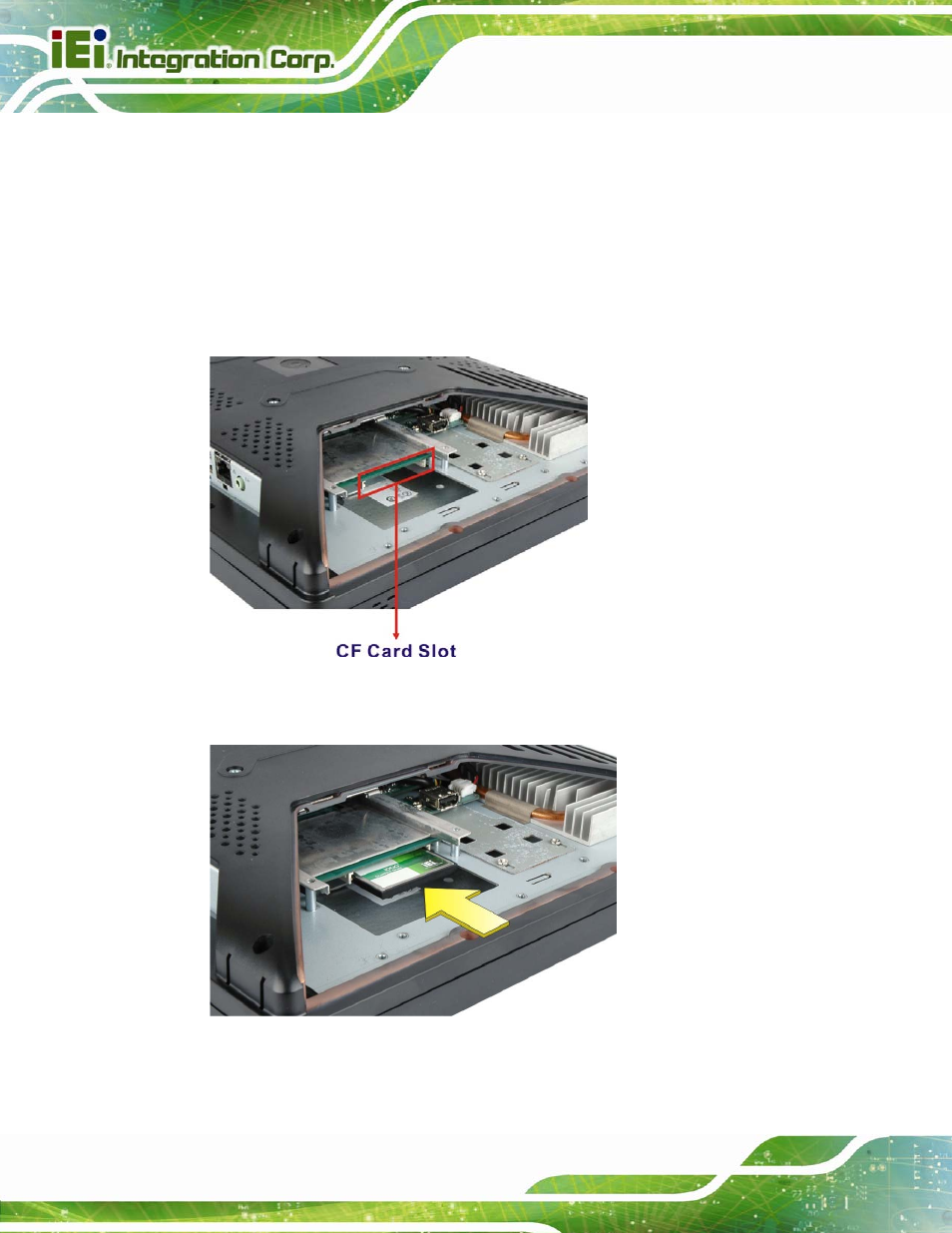

Locate the CompactFlash® slot as shown in Figure 2–5.

Figure 2–5: CompactFlash® Slot Location

Step 3:

Install the CompactFlash® card into the slot (see Figure 2–6).

Figure 2–6: CompactFlash® Install

Step 4:

Replace the brackets, access panel and screws.
