2.5 USB Dongle Installation

The installation for an USB dongle is described in this section.

Step 1:

Remove the access panel and brackets as described in the HDD installation

instructions.

Step 2:

Locate the USB dongle connector and install the USB dongle as shown below.

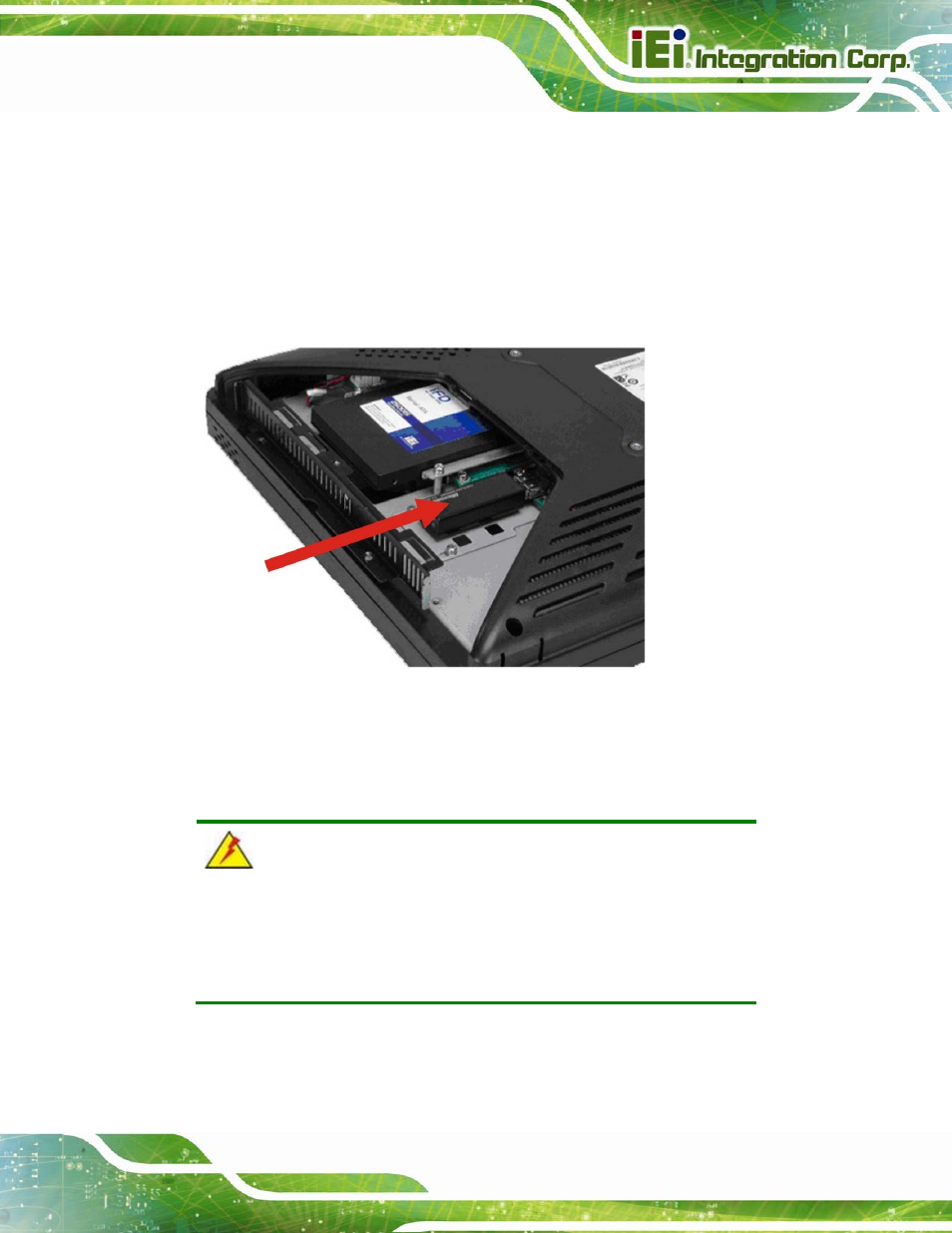

Figure 2-7: USB Dongle Installation

Step 3:

Replace the bracket, access panel and screws.

2.6 Cover Removal

WARNING!

Turn off the power before removing the back cover

. Risk of

electrocution. Severe damage to the product and injury to the body

may occur if internal parts are touched while the power is still on.
