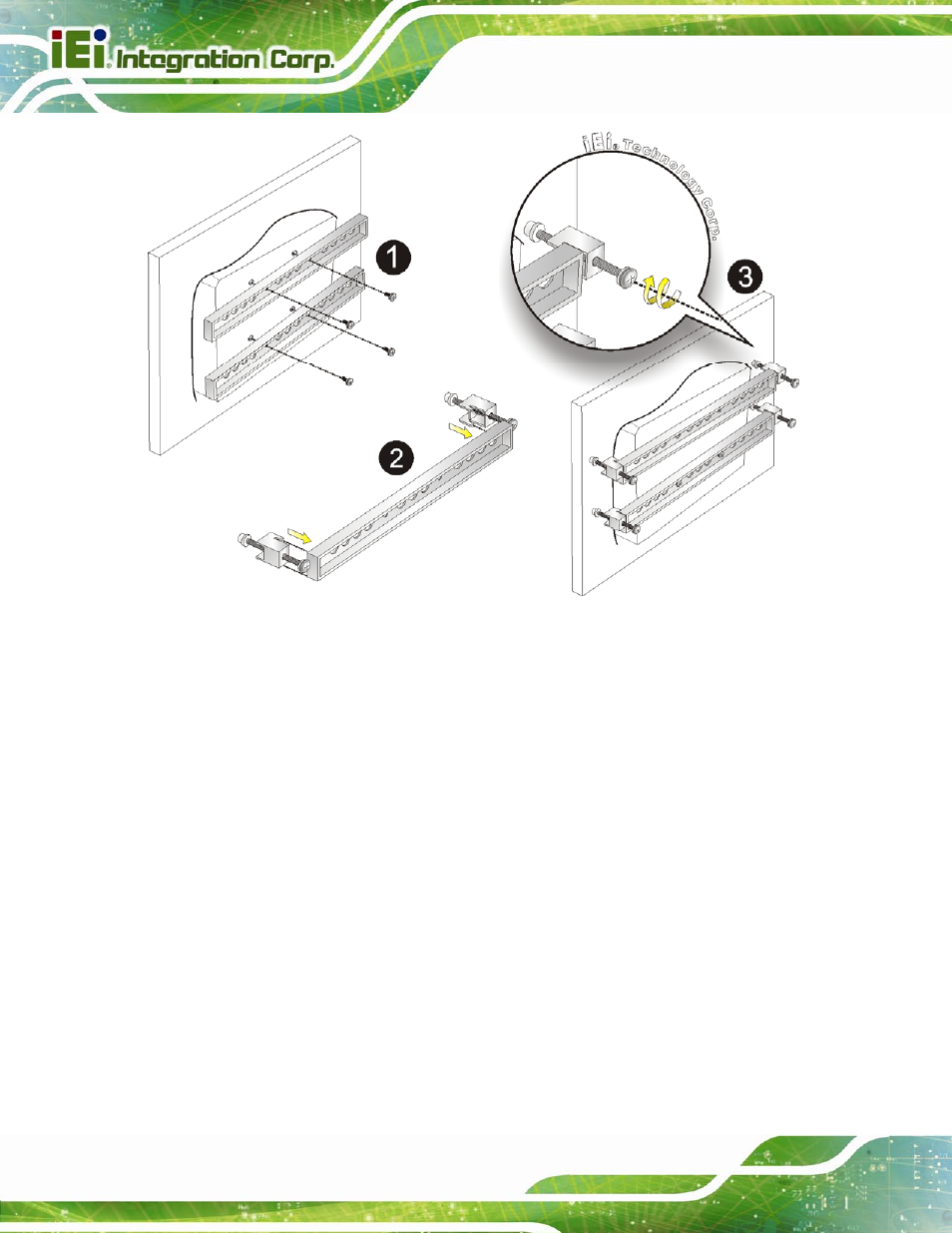

Figure 2-20: Tighten the Panel Mounting Clamp Screws

2.8.3 Stand Mounting

To mount the AFL2-W15A-N270 using the stand mounting kit, please follow the steps

below.

Step 1:

Locate the screw holes on the rear of the AFL2-W15A-N270. This is where the

bracket will be attached.

Step 2:

Align the bracket with the screw holes.

Step 3:

To secure the bracket to the AFL2-W15A-N270 insert the retention screws into

the screw holes and tighten them.
