AFL2-W15A-N270 Panel PC

Page 6

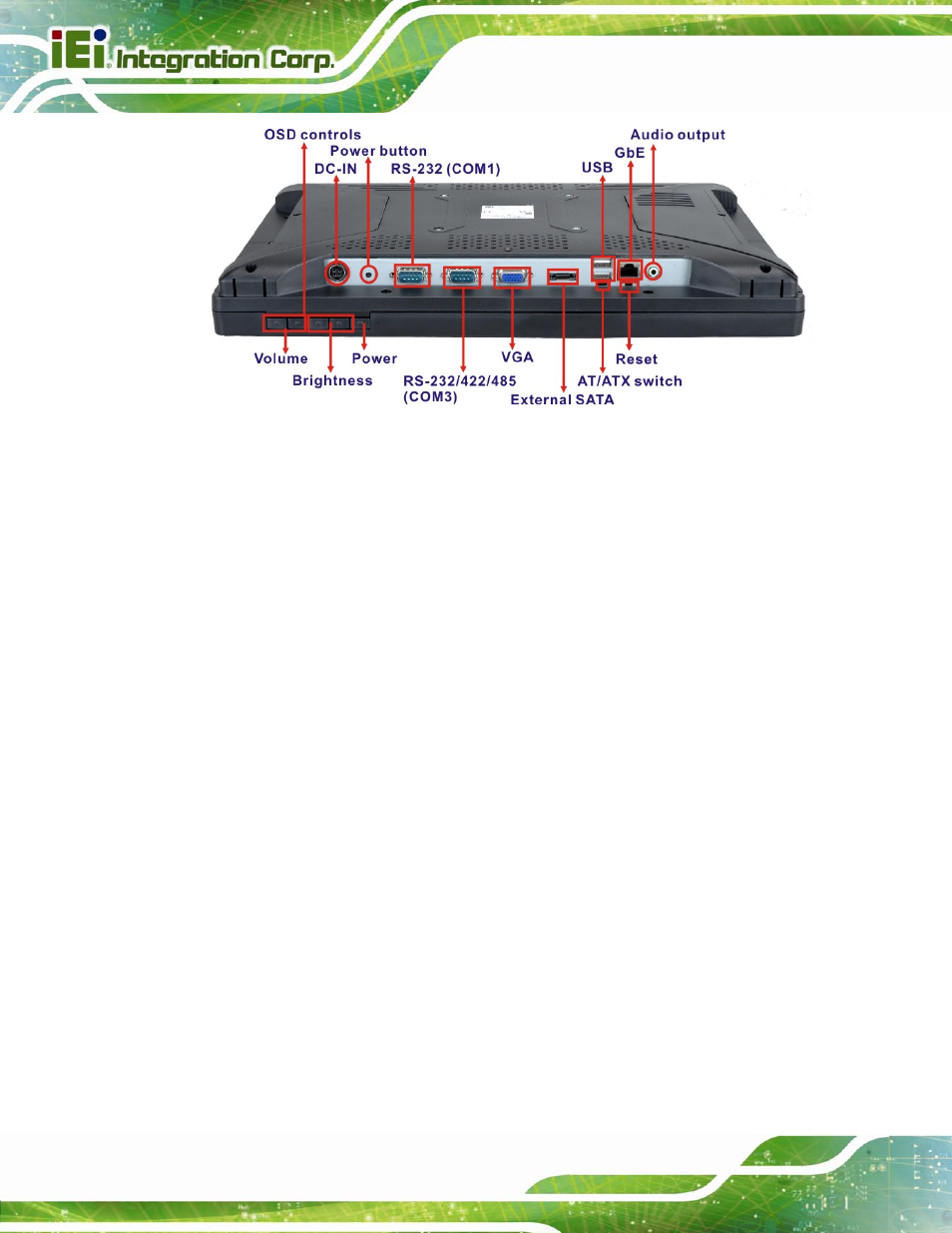

Figure 1-4: AFL2-W15A-N270 Bottom Panel

1.5 Internal Overview

All the components are contained under the rear panel. The internal components include

the touch panel module and the motherboard. The motherboard has memory, a wireless

module and a SATA hard drive bay.
