AFL2-W15A-N270 Panel PC

Page 30

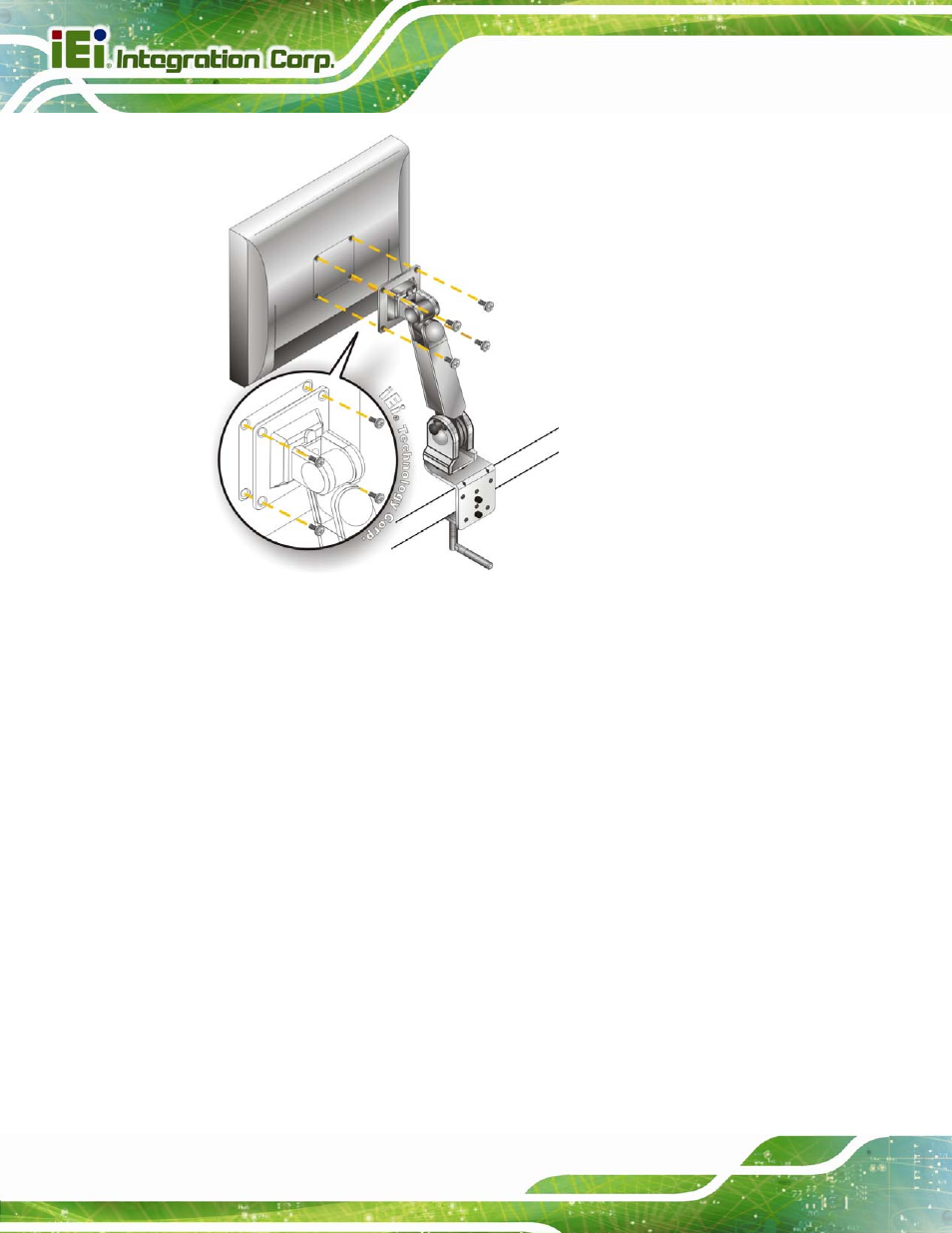

Figure 2-18: Arm Mounting (ARM-11-RS)

2.8.2 Panel Mounting

To mount the panel PC into a panel, please follow the steps below.

Step 1:

Select the position on the panel to mount the flat panel PC.

Step 2:

Cut out a section corresponding to the size shown below. The size must be

smaller then the outer edge. Recommended cutout sizes are shown below.
