AFL2-W15A-N270 Panel PC

Page 23

Short 7-9

COM1 RI Pin use +5 V (Default)

Table 2-5: COM1 Pin 9 Setting Jumper Settings

The COM1 Pin 9 Setting jumper locations are shown in Figure 2-12 below.

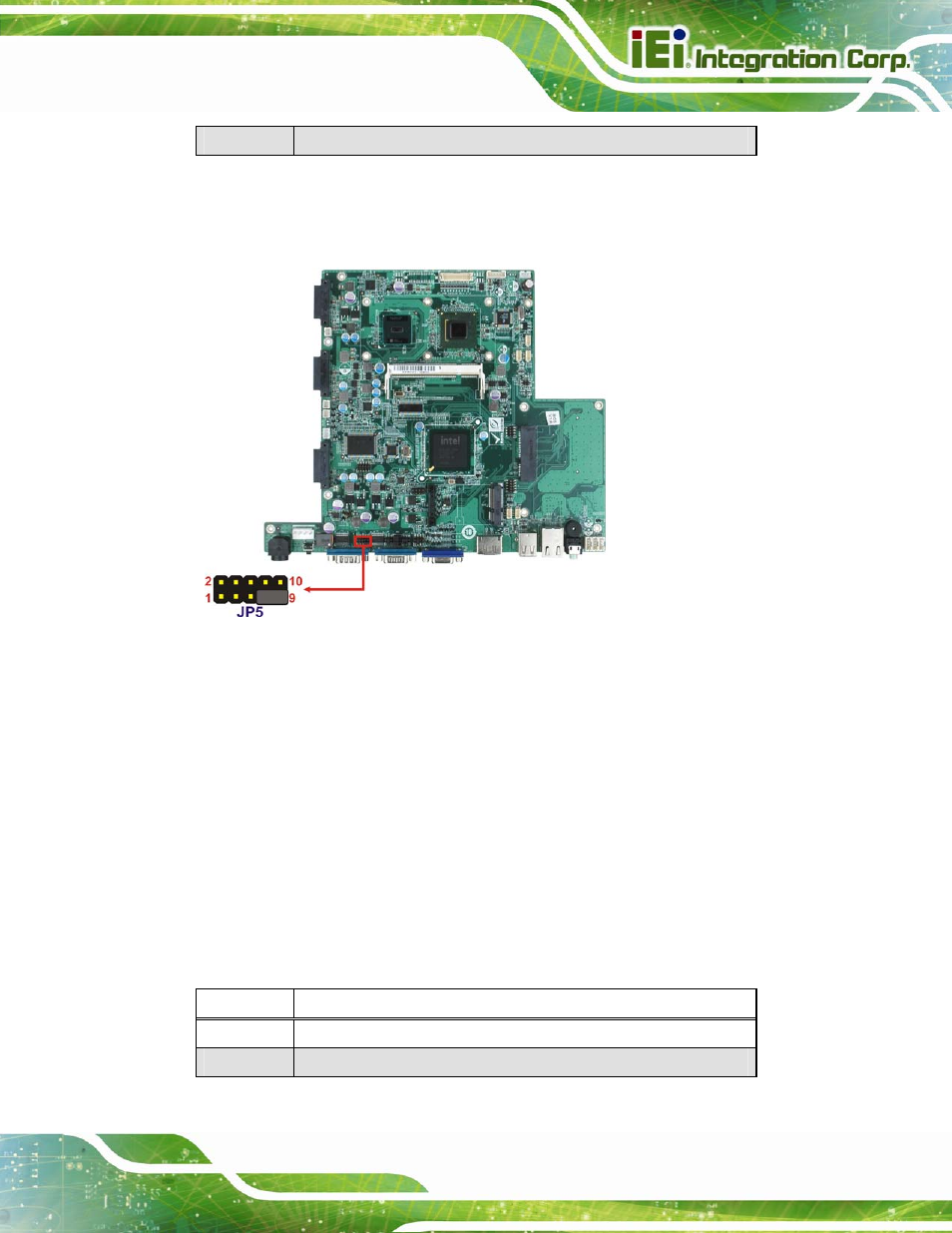

Figure 2-12: COM1 Pin 9 Setting Jumper Location

2.7.5 COM 3 Port Pin 9 Select

Jumper Label:

JP7

Jumper Type:

6-pin header

Jumper Settings:

See Table 2-6

Jumper Location:

See Figure 2-13

The jumper configures pin 9 on COM3 DB-9 connectors. Pin 9 on the COM3 DB-9

connector can be set as the ring (RI) signal, +5 V or +12 V. The COM3 Pin 9 Setting

jumper selection options are shown in Table 2-5.

JP7

Description

Short 1-2

COM3 RI Pin use +12 V

Short 3-4

COM3 RI Pin use RI (Default)
