AFL2-W15A-N270 Panel PC

Page 36

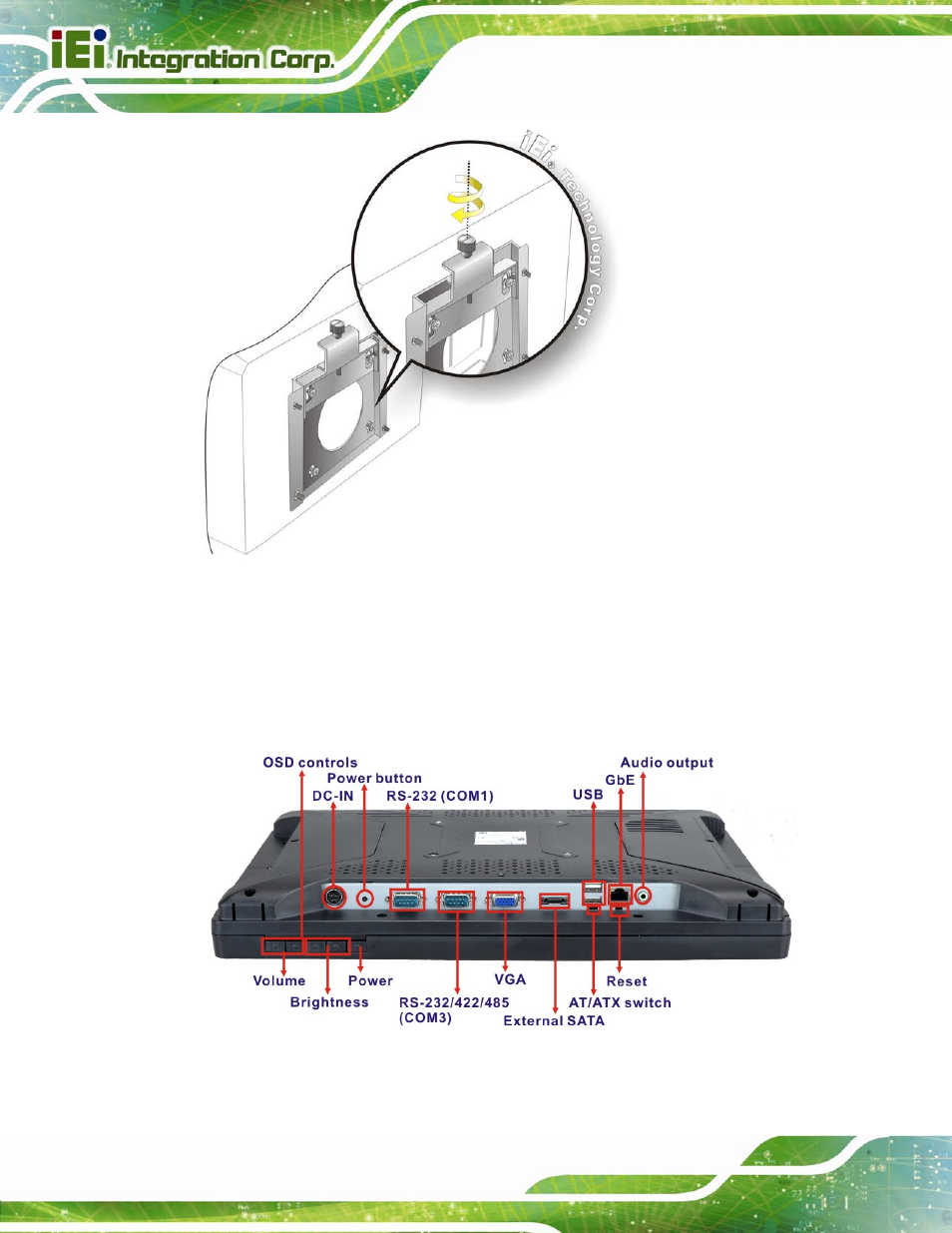

Figure 2-25: Secure the Panel PC

2.9 Bottom Panel Connectors

The bottom panel connectors extend the capabilities of the panel PC but are not essential

for operation (except power).

Figure 2-26: AFL2-W15A-N270 Bottom Panel
