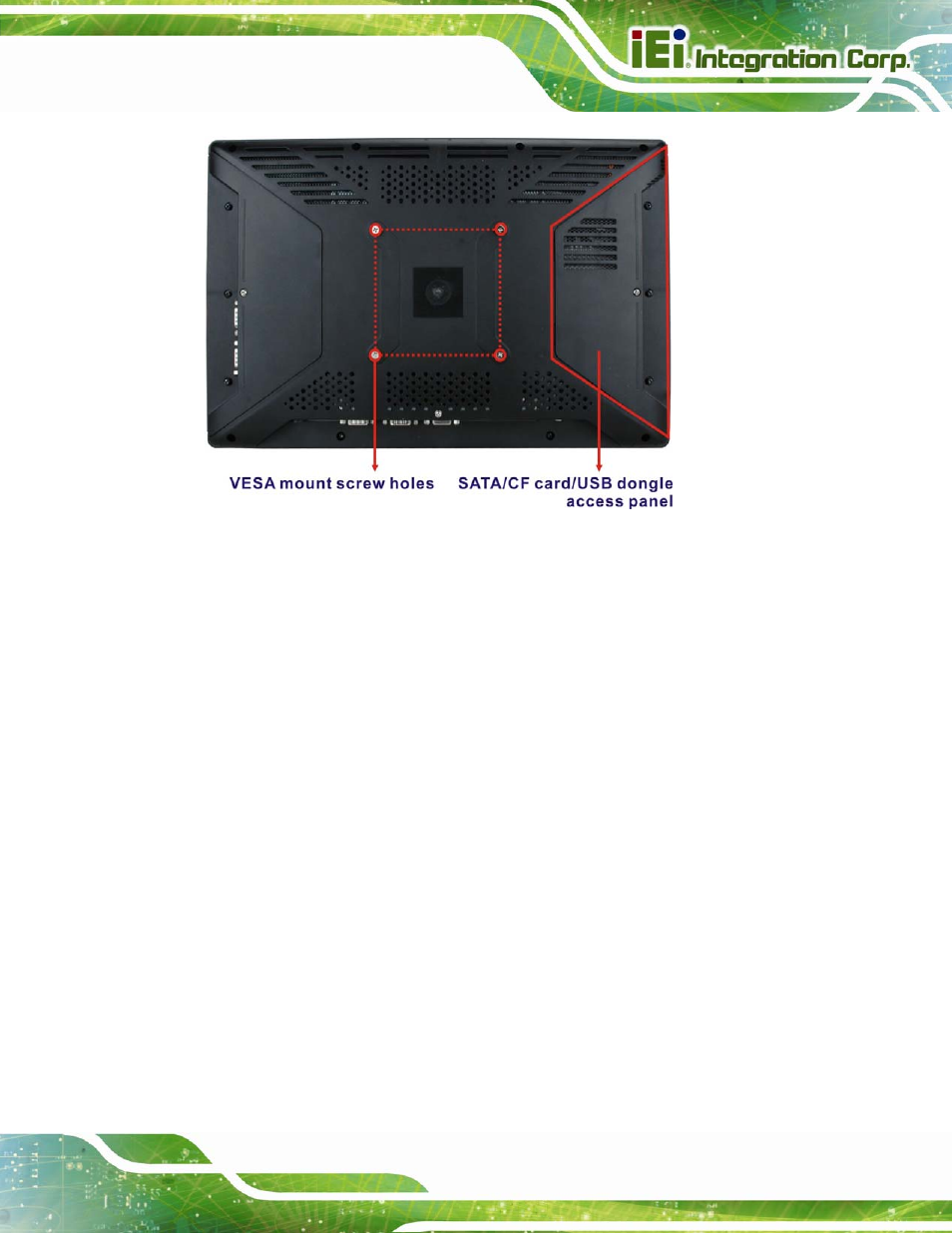

Figure 1-3: Rear Panel

1.4.3 Bottom Panel

The bottom panel has the following slots, buttons and switches:

1 x Audio Line-out jack

1 x RJ-45 jack for Gigabit LAN

2 x USB ports

1 x External SATA port

1 x VGA port

1 x RS-232/422/485 serial port (COM3)

1 x RS-232 serial port (COM1)

1 x Power button

1 x Power input (12 V)

1 x Reset button

1 x AT/ATX power mode switch

1 x OSD keypad
