Page 58: Figure 5-5 )

AFL-08AH-N270-CR Panel PC

Page 44

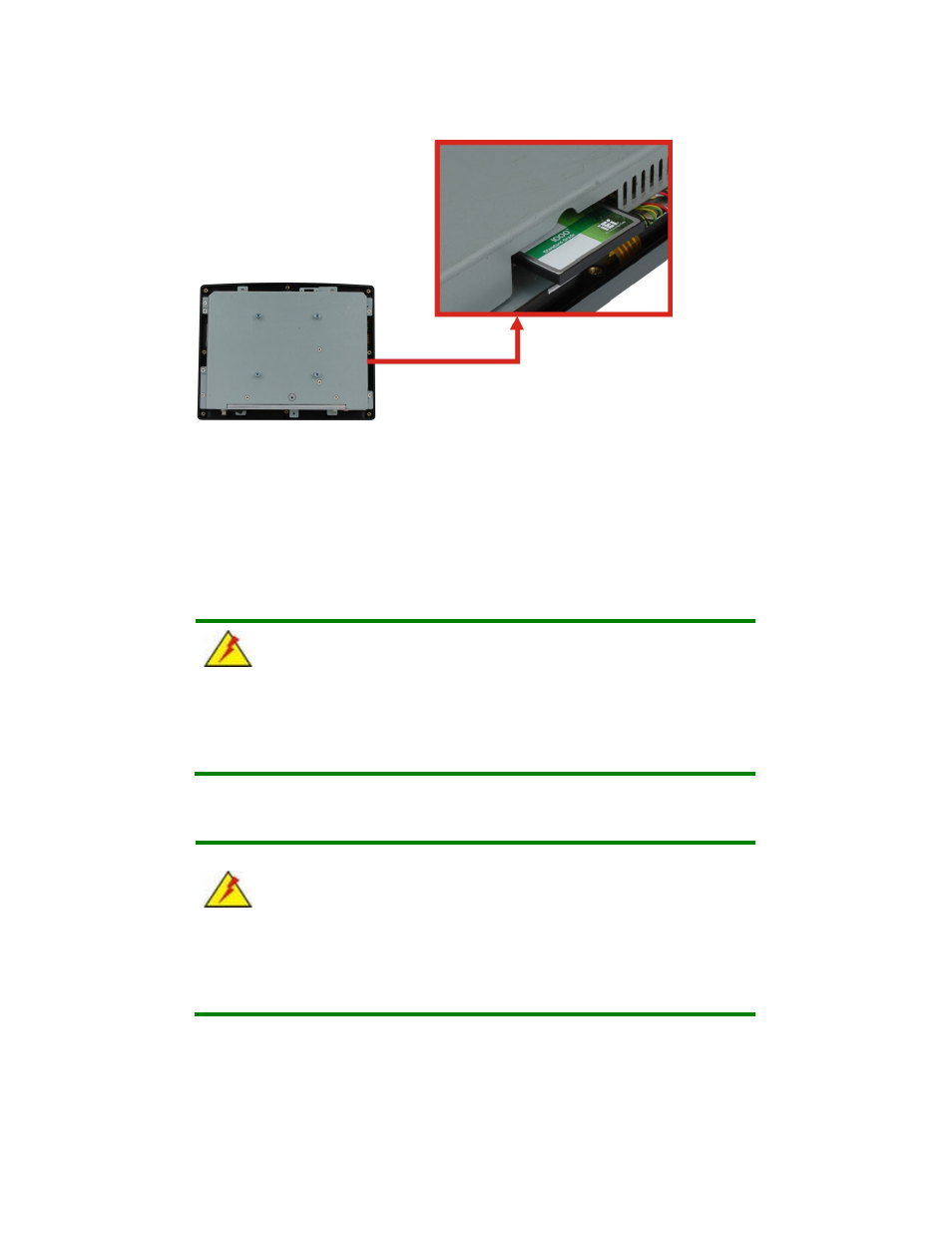

Figure 5-5: CF Card Location

Step 5:

Insert a new CF card into the slot.

Step 6:

Replace the plastic back cover..

Step 7:

Once replaced reinsert the nine previously removed retention screws.

Step 0:

WARNING:

Over-tightening back cover screws will crack the plastic frame.

Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm).

5.6 Reinstalling the Covers

WARNING:

Failing to reinstall the covers may result in permanent damage to the

system. Please make sure all coverings are properly installed.

When maintenance procedures are complete, please make sure all the covers are

replaced, including the following:
