AFL-08AH-N270-CR Panel PC
Page 13

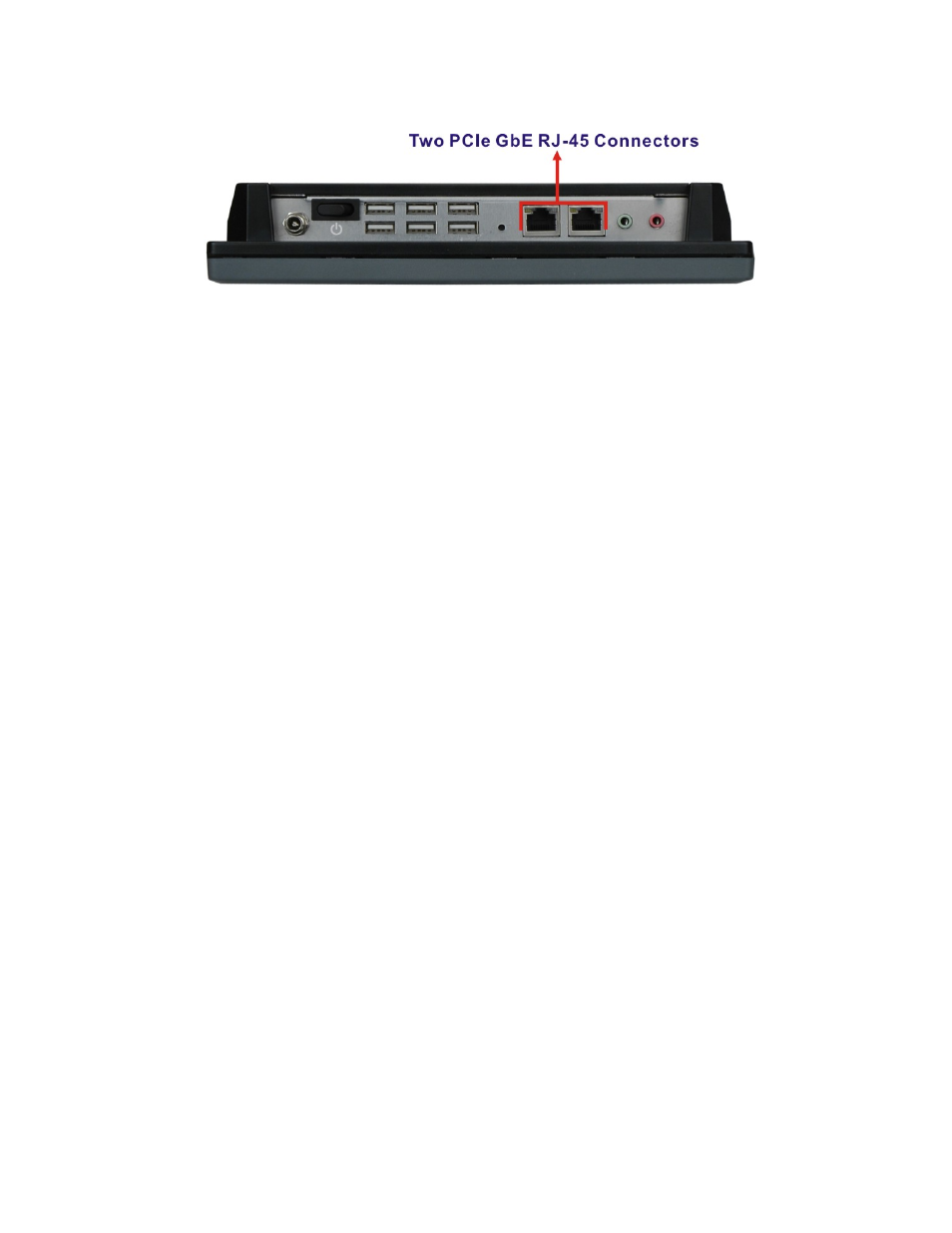

Figure 2-3: RJ-45 Ethernet Connectors
The PCIe lane from the Intel® ICH7 chipset of the AFL-08AH-N270-CR is interfaced to the
Realtek RTL8111CP PCIe gigabit Ethernet (GbE) controllers. The RTL8111CP controllers
are then connected directly to the RJ-45 connectors on the bottom panel and provides
external GbE connectivity. Some of the RTL8111CP controller features are listed below:
Integrated 10/100/1000 transceiver
Supports PCI Express™ 1.1
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Serial EEPROM
Transmit/Receive on-chip buffer support
64-pin QFN package (Green package)
2.4.2 External USB Connectors
There are six USB 2.0 connectors on the bottom panel of the AFL-08AH-N270-CR. All
USB 2.0 connectors are interfaced directly to the USB controllers on the ICH7-M
southbridge. These USB connectors are fully compliant with USB specification Revision
2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1 and USB
2.0 compliant devices.
