AFL-08AH-N270-CR Panel PC

Page 15

2.6 Audio

2.6.1 Audio Codec Controller

The integrated audio controller on the Intel® ICH7 Southbridge is integrated to a RealTek

ALC888 audio codec. The RealTek ALC888 is connected to external audio line out jack

and mic-in jack. The RealTek ALC888 is a 7.1+2 channel High Definition Audio codec.

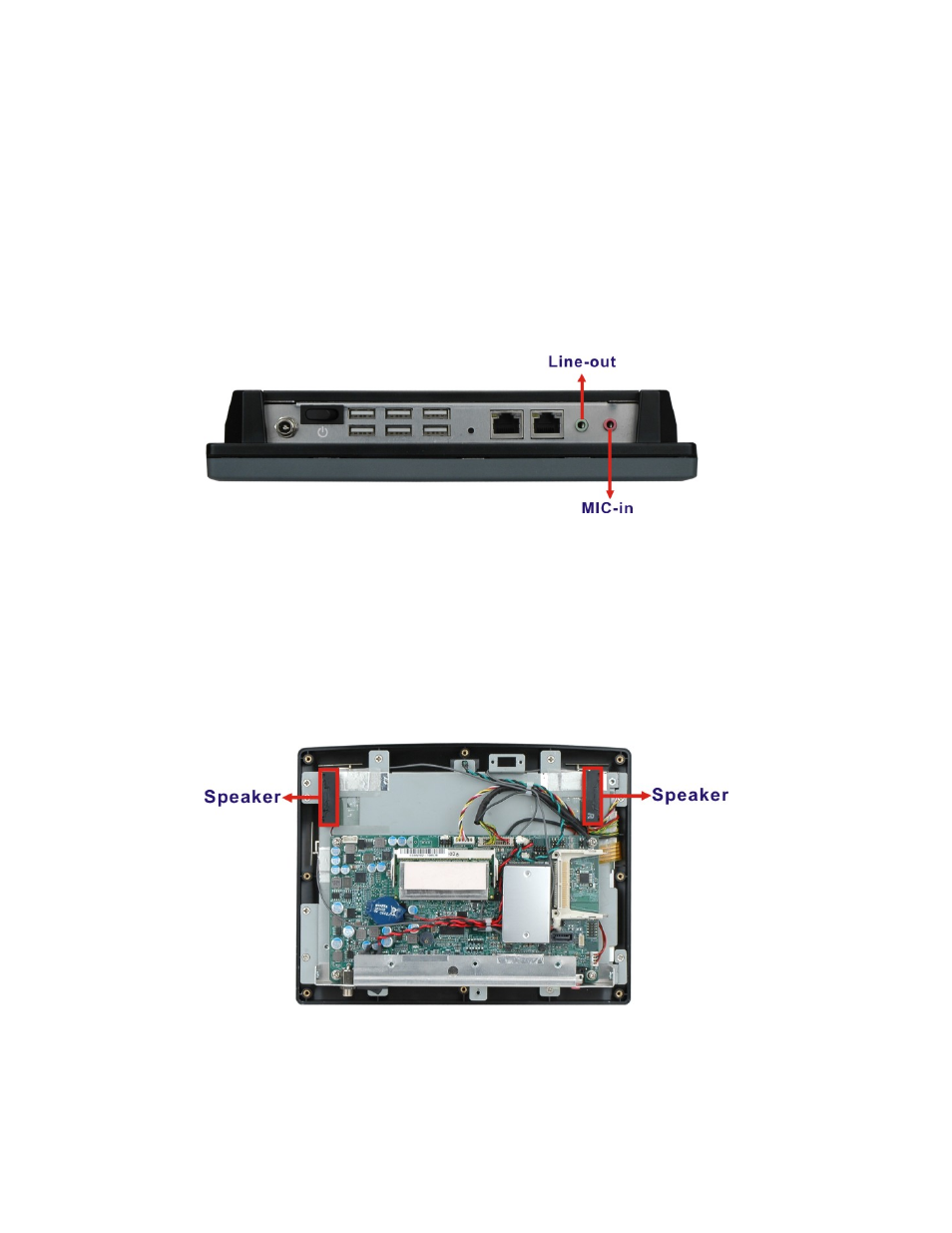

The audio connectors are shown in Figure 2-6.

Figure 2-6: Audio Jack

2.6.2 Stereo Speakers

Two internal 1.5 W stereo speakers on the sides of the AFL-08AH-N270-CR are

interfaced to the system through a Philips TDA1517p integrated class-B dual output

amplifier.

Figure 2-7: Stereo Speakers
