AFL-08AH-N270-CR Panel PC

Page 37

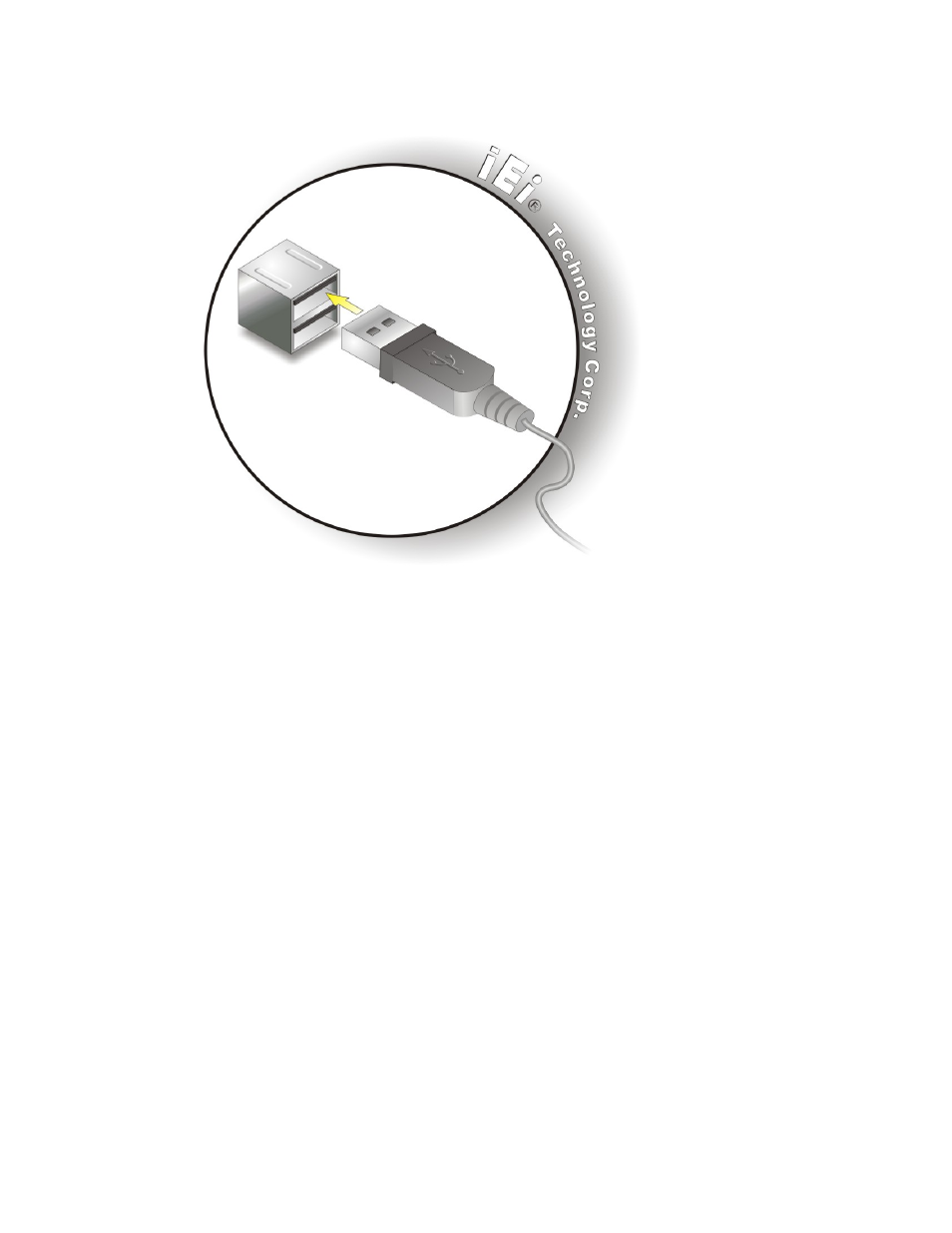

Figure 4-13: USB Device Connection

Step 3:

Insert the device connector.

Once aligned, gently insert the USB device

connector into the onboard connector.

Step 0:
