AFL-08AH-N270-CR Panel PC

Page 5

1 x Audio line-out connector

1 x Audio mic-in connector

1 x 12 V DC In connector

2 x LAN connectors

6 x USB 2.0 connectors

1 x Power switch

1 x Reset button

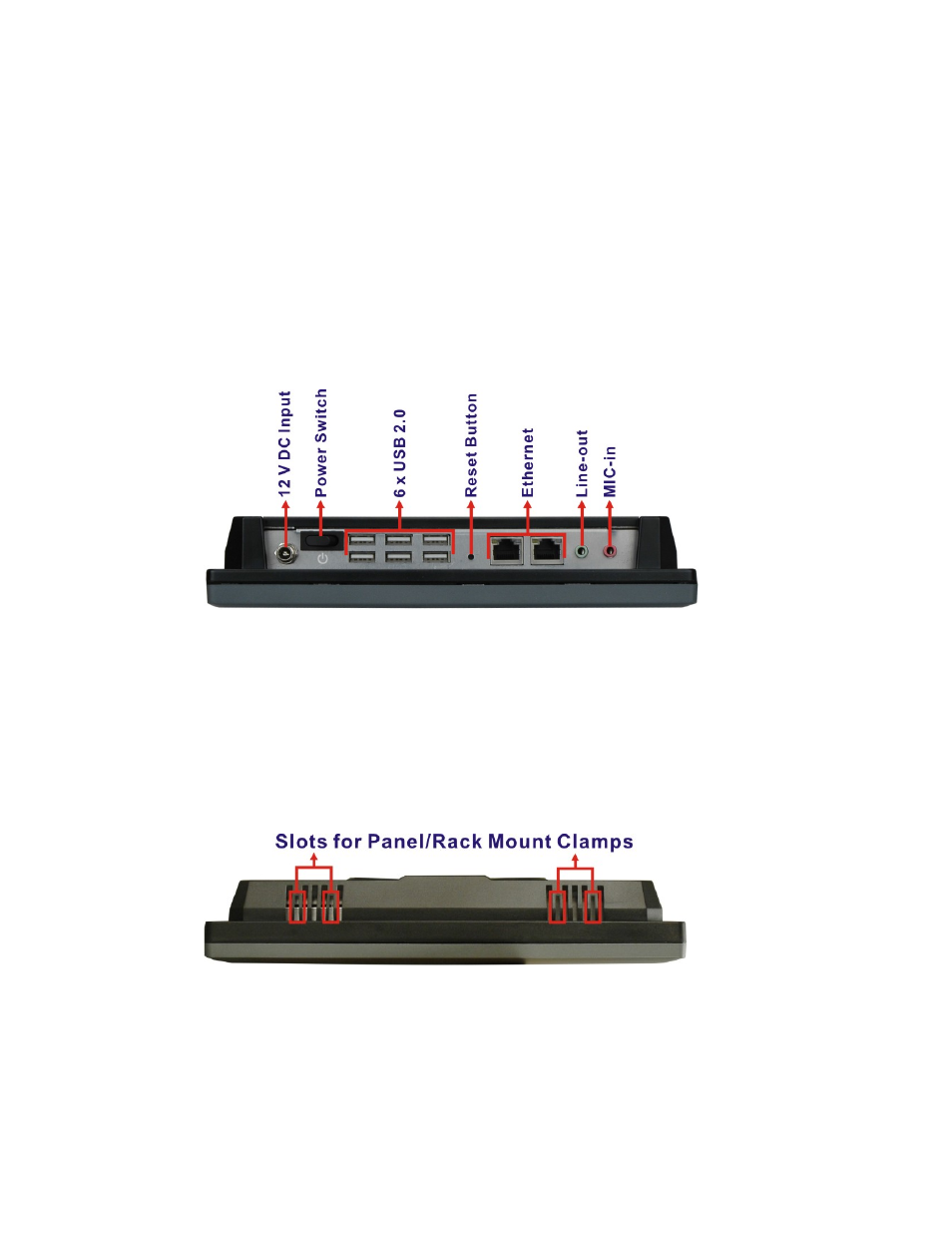

The external I/O interface connector panel is shown in Figure 1-4.

Figure 1-4: AFL-08AH-N270-CR I/O Interface Connector Panel

1.2.5 Top Panel and Side Panels

The top panel and side panels of AFL-08AH-N270-CR provide access to slots that support

panel mount and rack mount (Figure 1-5).

Figure 1-5: AFL-08AH-N270-CR Top View
