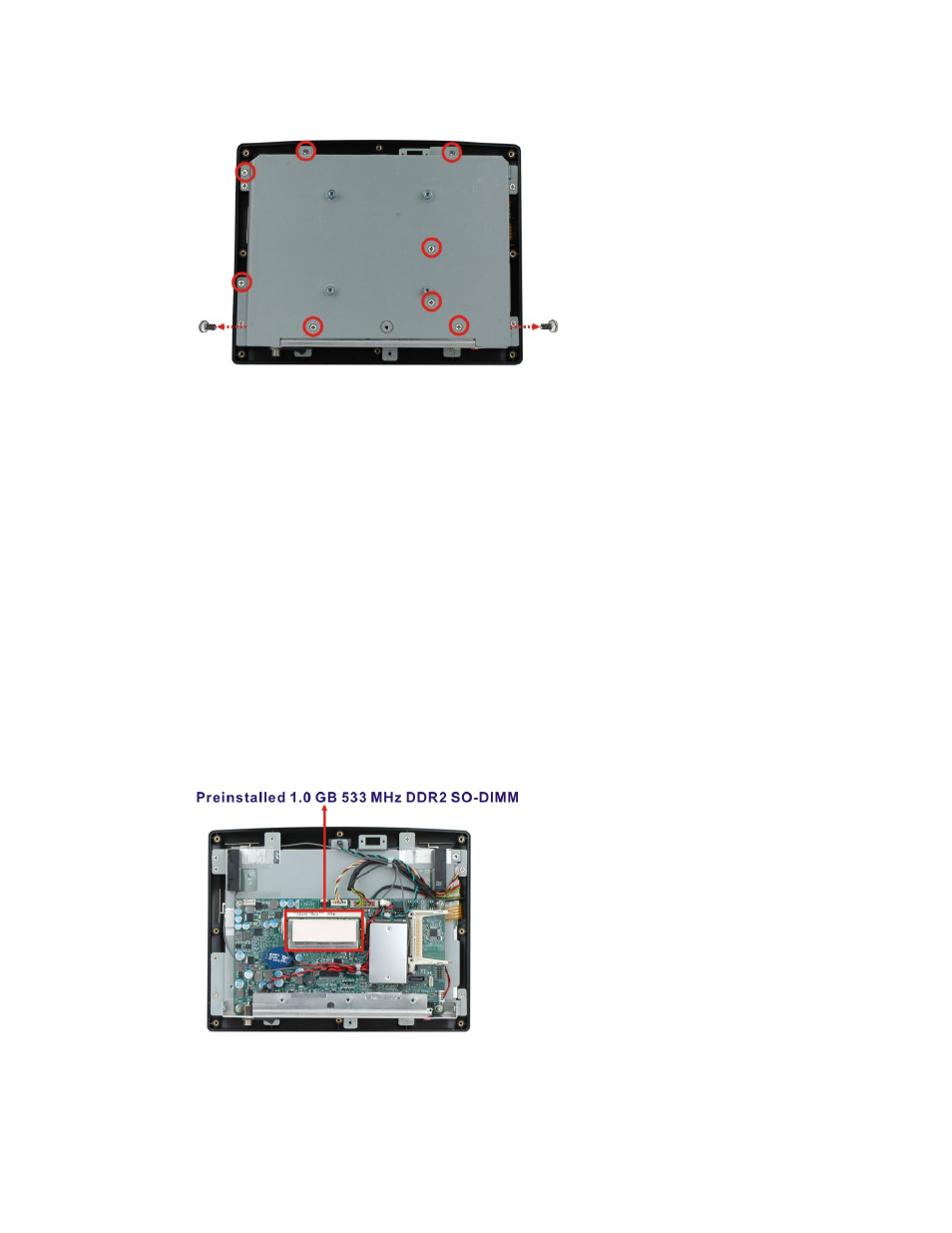

Figure 5-2: Aluminum Back Cover Retention Screws

Step 2:

Lift the aluminum cover off the AFL-08AH-N270-CR.

Step 0:

5.5 Replacing Components

5.5.1 Memory Module Replacement

The flat panel PC is preinstalled with a 1 GB DDR2 memory module. If the memory

module is fail, follow the instructions below to replace the memory module.

Step 1:

Remove the back cover. See Section 5.4.1 above.

Step 2:

Remove the internal aluminum back cover. See Section 5.4.2 above.

Step 3:

Locate the DDR2 SO-DIMM on the motherboard (Figure 5-3).

Figure 5-3: AFL-10A-N270 SO-DIMM Socket Location
