2.1 Dimensions

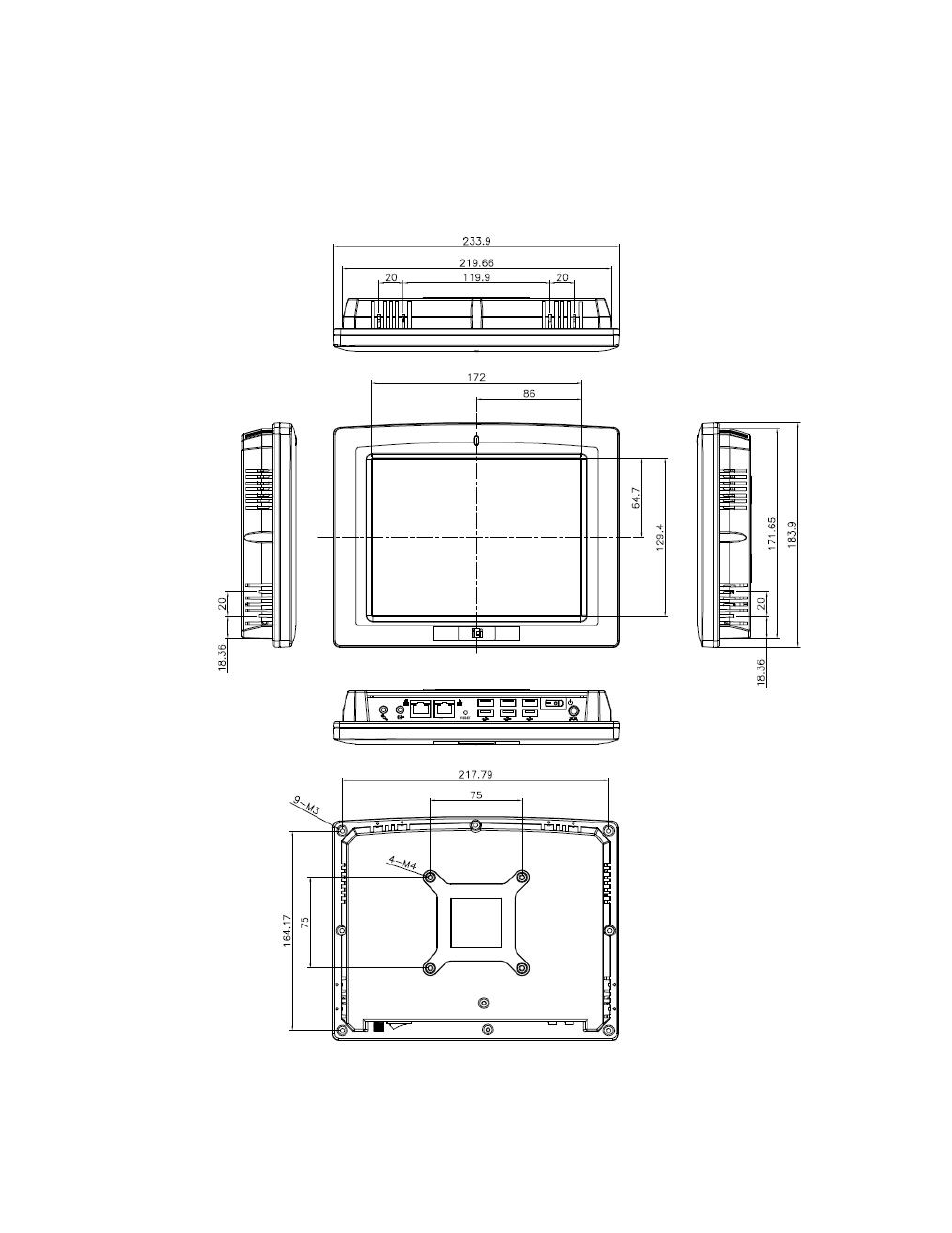

The AFL-08AH-N270-CR dimensions are shown in Figure 2-1
Figure 2-1: AFL-08AH-N270-CR Dimensions (mm)
