AFL-08AH-N270-CR Panel PC

Page 25

Step 3:

Remove the retention screws securing the internal aluminum cover (Figure 5-2).

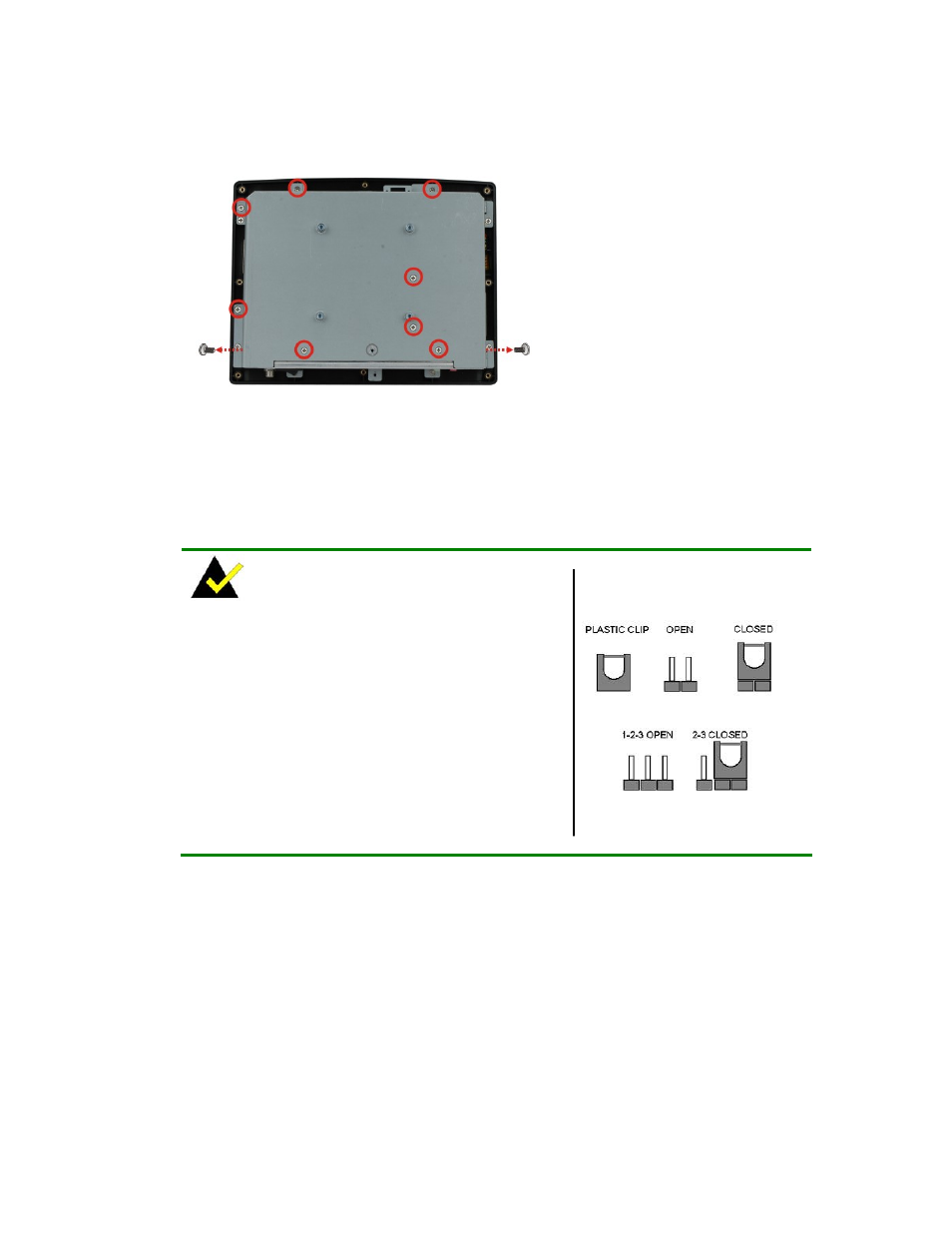

Figure 4-2: Aluminum Back Cover Retention Screws

Step 4:

Lift the aluminum cover off the AFL-08AH-N270-CR.

Step 0:

4.6 Jumper Settings

NOTE:

A jumper is a metal bridge used to close an

electrical circuit. It consists of two or three metal

pins and a small metal clip (often protected by a

plastic cover) that slides over the pins to connect

them. To CLOSE/SHORT a jumper means

connecting the pins of the jumper with the plastic

clip and to OPEN a jumper means removing the

plastic clip from a jumper.

4.6.1 Access the Jumpers

To access the jumpers, remove the back cover. To remove the back cover, please refer to

Section 4.5
