AFL-08AH-N270-CR Panel PC
Page 2
1.1 Overview

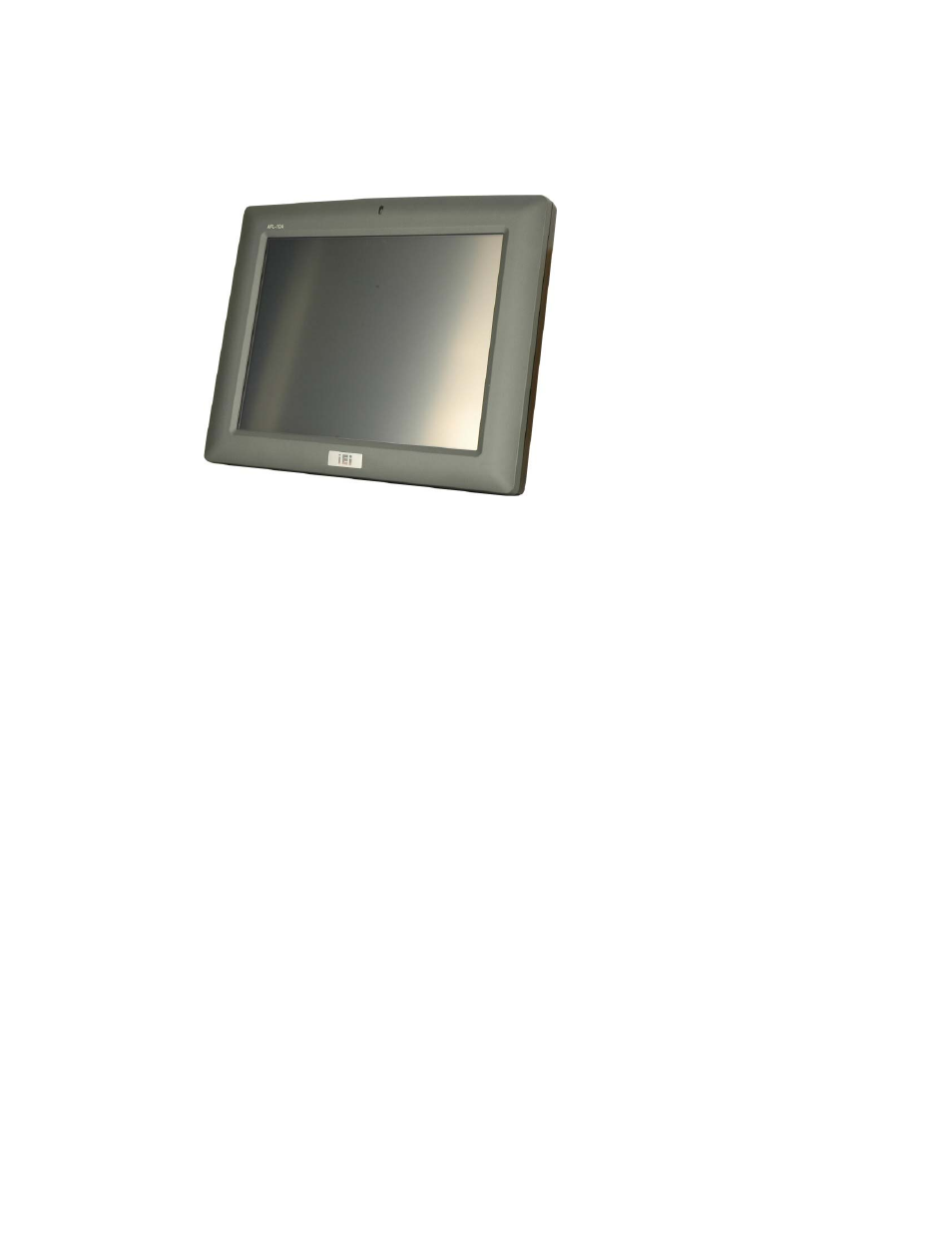

Figure 1-1: AFL-08AH-N270-CR Flat Panel PC
The AFL-08AH-N270-CR is Intel® Atom™ powered flat panel PC with a rich variety of
functions and peripherals.
An Intel® 945GSE graphics memory controller hub (GMCH) coupled with an Intel®
ICH7-M input/output controller hub ensures optimal memory, graphics, and peripheral I/O
support. The system comes with 1.0 GB of preinstalled DDR2 SDRAM and supports a
maximum of 2.0 GB of DDR2 SDRAM ensuring smooth data throughputs with reduced
bottlenecks and fast system access.
Six external USB 2.0 ports ensure simplified connectivity to a variety of external peripheral
devices. Wi-Fi capabilities and two RJ-45 Ethernet connectors ensure smooth connection
of the system to an external LAN.
1.1.1 Features
The AFL-08AH-N270-CR features the following:
Intel® Atom™ processor
Intel® 945GSE chipset
1GB 533 MHz DDR2 SDRAM preinstalled
802.11 b/g wireless module
