AFL-08AH-N270-CR Panel PC
Page 12

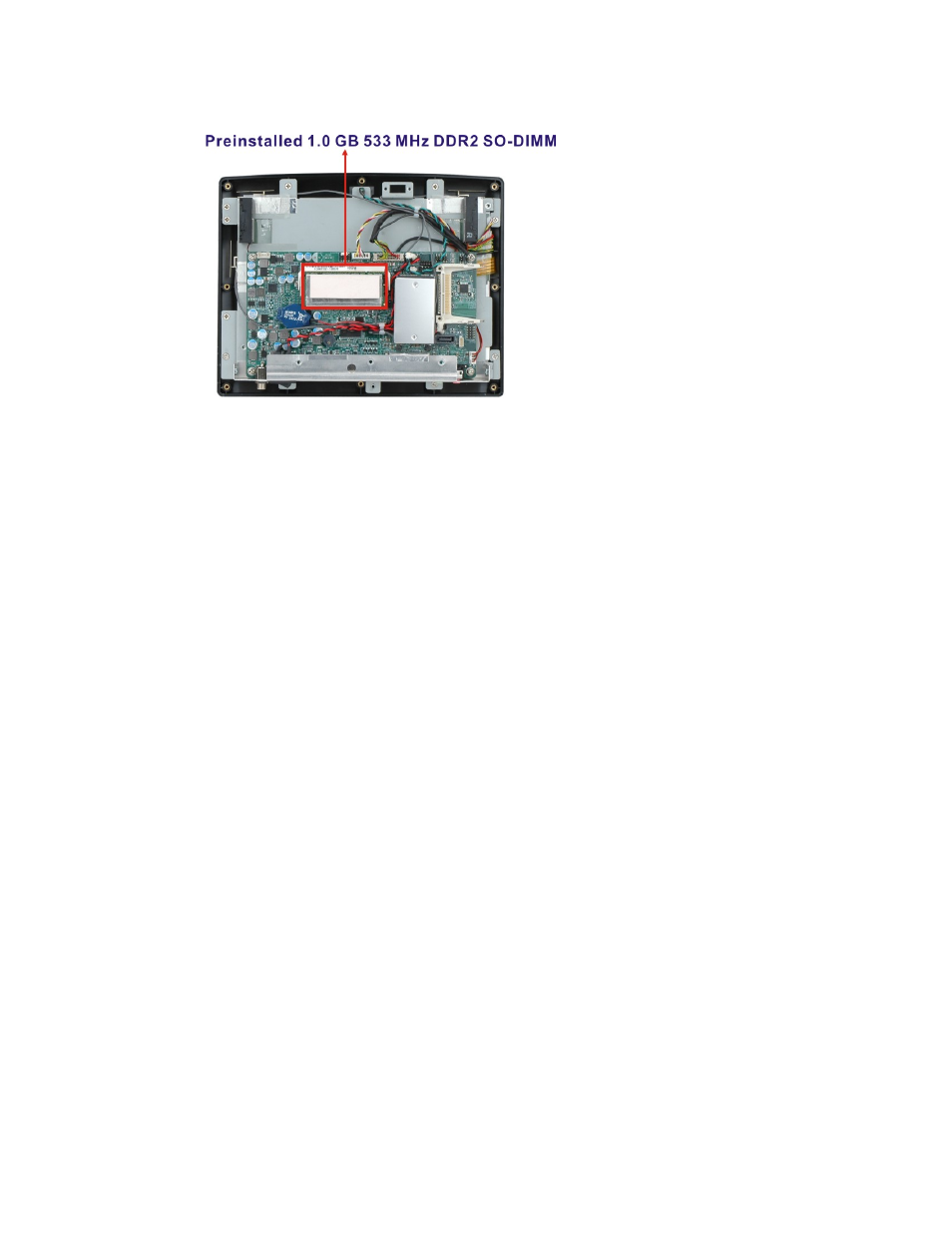

Figure 2-2: Preinstalled DDR2 SO-DIMM
2.3.2 Additional Memory
The Intel® 945GSE is capable of supporting one 200-pin 2.0 GB (max.) 533 MHz or 400
MHz DDR2 SDRAM SO-DIMM. If additional memory is required, please contact a sales
representative and discuss the necessary system requirement.
2.3.3 Storage Capacity
The AFL-08AH-N270-CR supports an easily installed CompactFlash® Type II (CF Type II)
memory disk.
2.4 External Peripheral Interface Connectors
The following section describes the external peripheral interface connectors on the bottom
panel of the subsystem.
2.4.1 LAN Connectivity
The AFL-08AH-N270-CR has two RJ-45 LAN connectors on the bottom panel.
