AFL-08AH-N270-CR Panel PC

Page 14

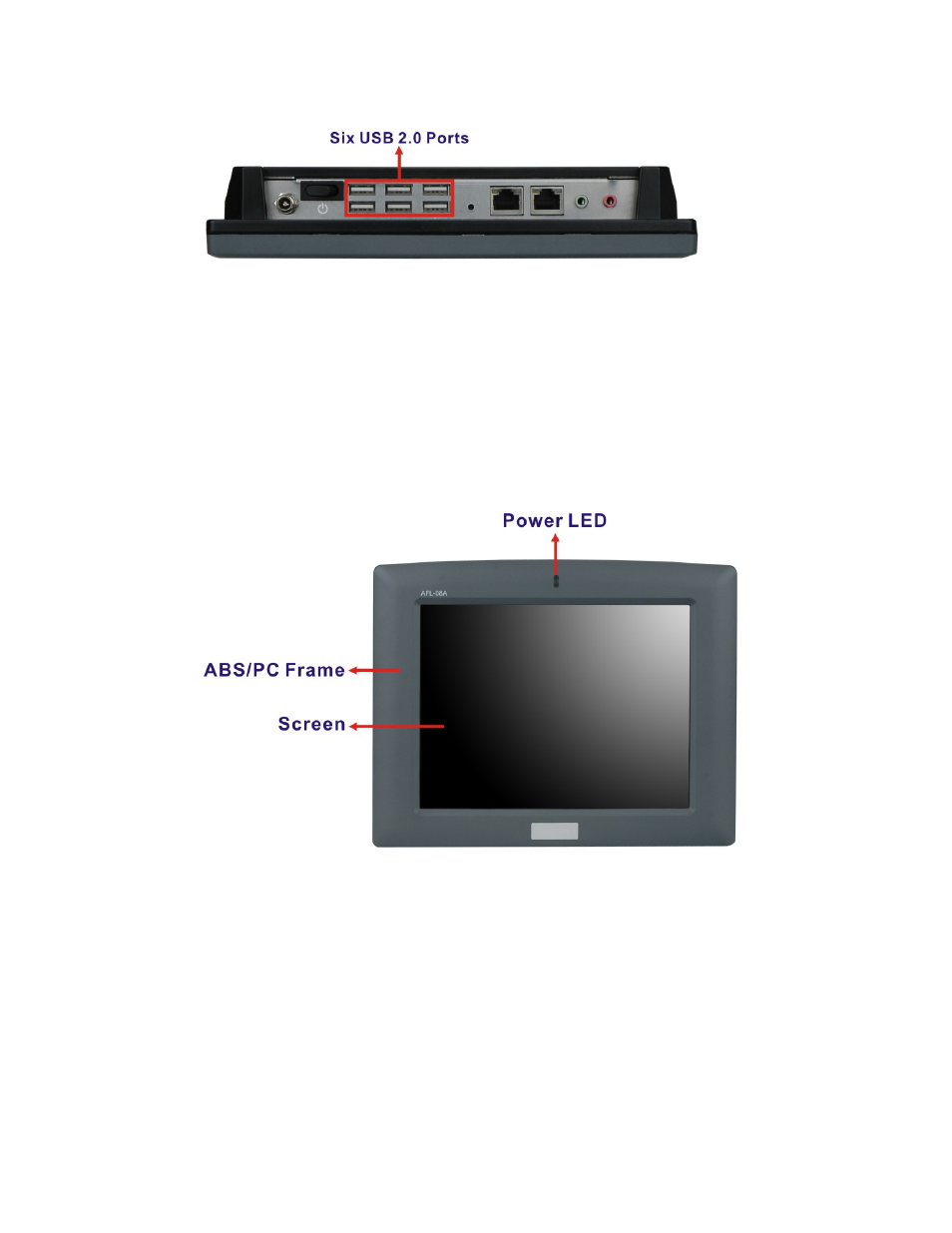

Figure 2-4: External USB Ports

2.5 Front Side

2.5.1 Monitor

A LCD screen is installed on the front of the AFL-08AH-N270-CR. The monitor maximum

resolution is 800 x 600. The screen is shown in Figure 2-5 below.

Figure 2-5: LCD Screen

2.5.2 Touch-Screen Module

A controller for the 4-wire resistive touch screen is installed on the motherboard. The

sensitive touch screen is accurate, reliable and durable.
