ECN-360A-D2550 Em b e d d e d S ys te m

P a g e 45

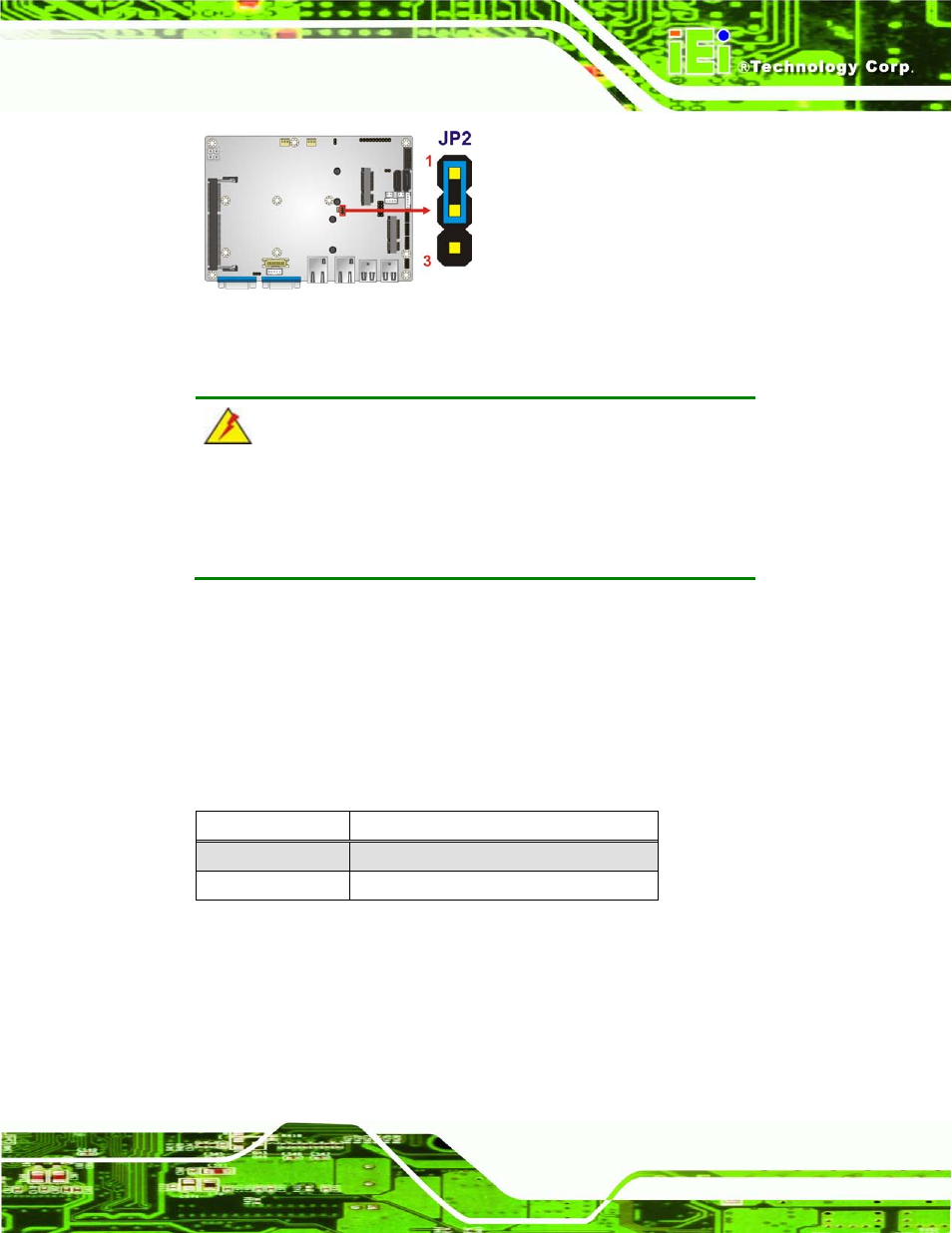

Figure 4-22: Clear CMOS Jumper Location

4.4.3 LVDS 1 Vo lta g e S e le c tio n

WARNING:

Permanent damage to the screen and ECN-360A-D2550 may occur if

the wrong voltage is selected with this jumper. Please refer to the user

guide that came with the monitor to select the correct voltage.

J u m p e r La b e l:

JP3

J u m p e r Typ e :

3-pin header

J u m p e r S e ttin g s :

See Table 4-25

J u m p e r Lo c a tio n :

See Figure 4-23

Sets the voltage provided to the monitor by LVDS1.

Setting

Description

Short 1-2

+3.3V LVDS (Default)

Short 2-3

+5V LVDS

Table 4-25: LVDS1 Voltage Selection Jumper Settings
