ECN-360A-D2550 Em b e d d e d S ys te m
P a g e 35
Pin Description Pin Description
29 GND 30 SMBCLK
31 PCIE_TXN 32 SMBDATA
33 PCIE_TXP 34 GND
35 GND 36 USBD-
37 GND 38 USBD+
39 VCC3 40 GND
41 VCC3 42 N/C
43 GND 44 N/C
45 N/C 46 N/C
47 N/C 48 1.5V
49 N/C 50 GND
51 M-SATA Detect 52 VCC3
Table 4-12: PCIe Mini Card Slot Pinouts
4.2.11 P o we r Co n n e c to r (9V~28V)
CN La b e l: CN2
CN Typ e : 4-pin connector
CN Lo c a tio n : See Figure 4-12
CN P in o u ts : See Table 4-13
The power connector is connected to an external power supply and supports 9V~28V
power input. Power is provided to the system, from the power supply through this
connector.

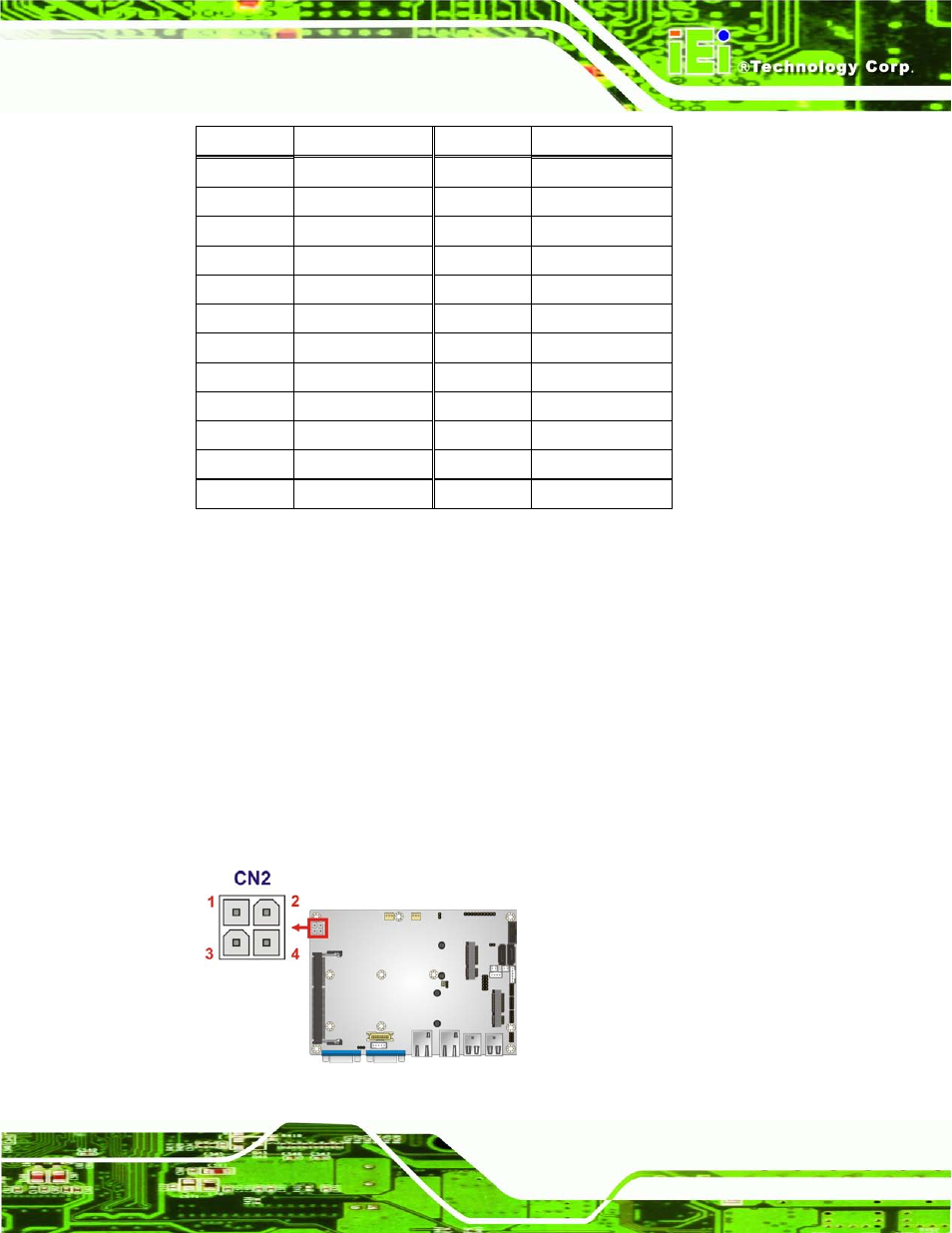

Figure 4-12: Power Connector Location
