4.3.3 VGA Co n n e c to rs
CN La b e l: VGA1, VGA2
CN Typ e : 15-pin Female
CN Lo c a tio n : See Figure 4-18
CN P in o u ts : See Table 4-21 and Figure 4-20
Each VGA connector connects to a monitor that accepts a standard VGA input.
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 4-21: VGA Connector Pinouts

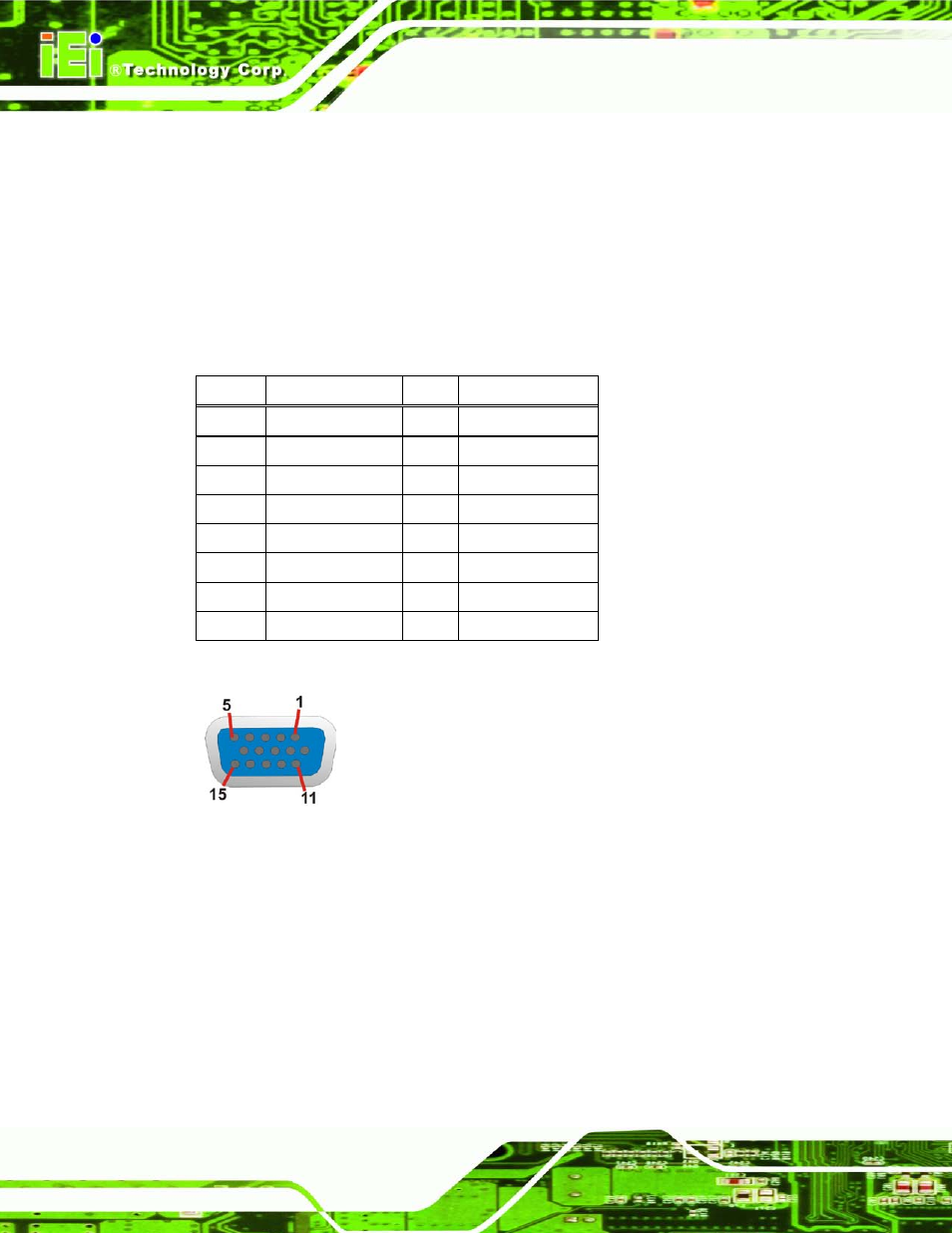

Figure 4-20: VGA Connector
