ECN-360A-D2550 Em b e d d e d S ys te m
P a g e 43
4.4 J u m p e r S e ttin g s

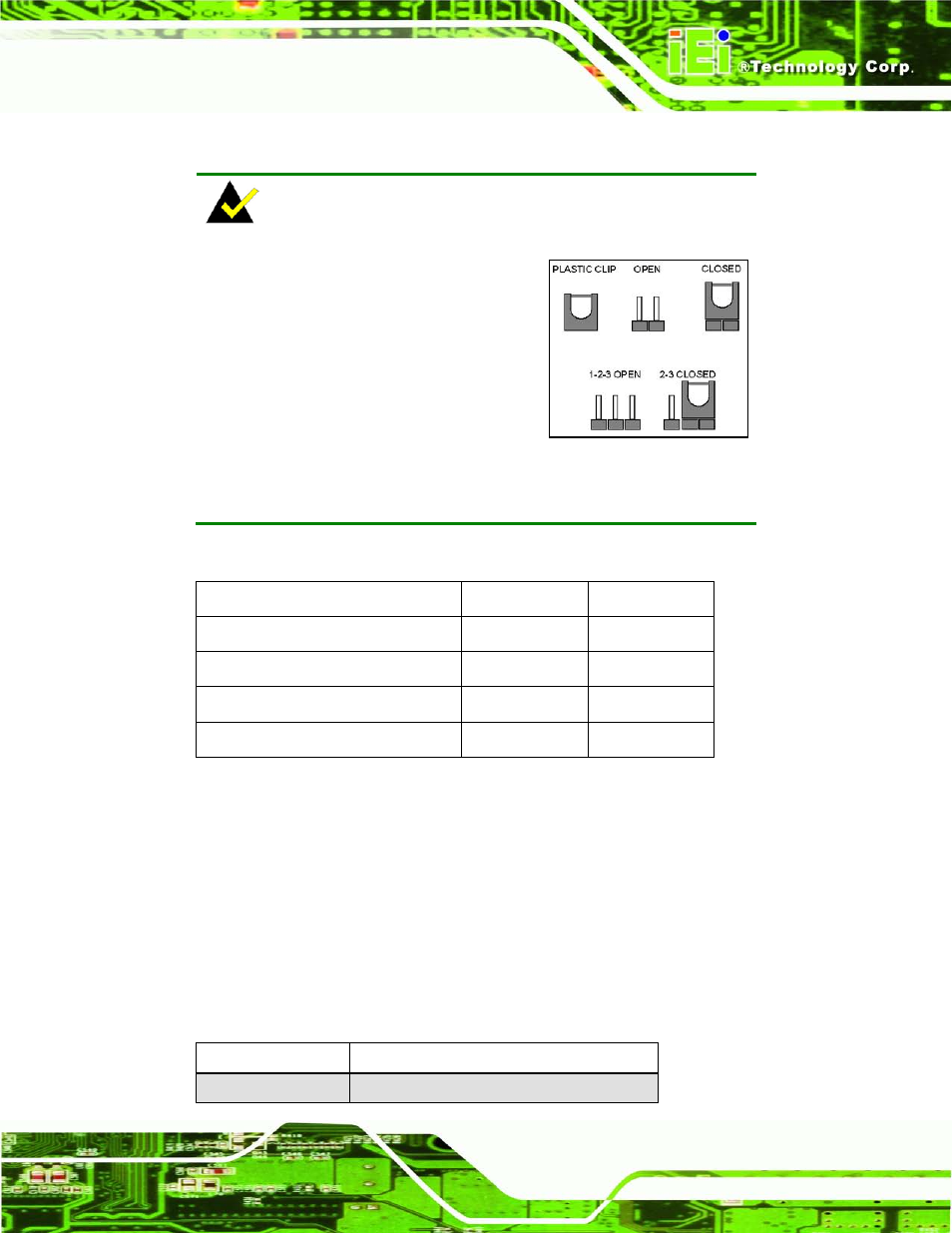

NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
The jumpers on the motherboard are listed in Table 4-22.
De s c rip tio n La b e l Typ e
AT/ATX power selection JP1 2-pin header
Clear CMOS JP2 3-pin header
LVDS1 voltage selection JP3 3-pin header
mSATA/PCIe Mini selection MSATA_SW1 2-pin header
Table 4-22: Jumpers
4.4.1 AT/ATX P o we r S e le c tio n J u m p e r
J u m p e r La b e l: J P 1
J u m p e r Typ e : 2-pin header
J u m p e r S e ttin g s : See Table 4-23
J u m p e r Lo c a tio n : See Figure 4-21
The AT/ATX power selection jumper specifies the system power mode as AT or ATX.
Setting Description
Short 1-2 Use ATX power (Default)
