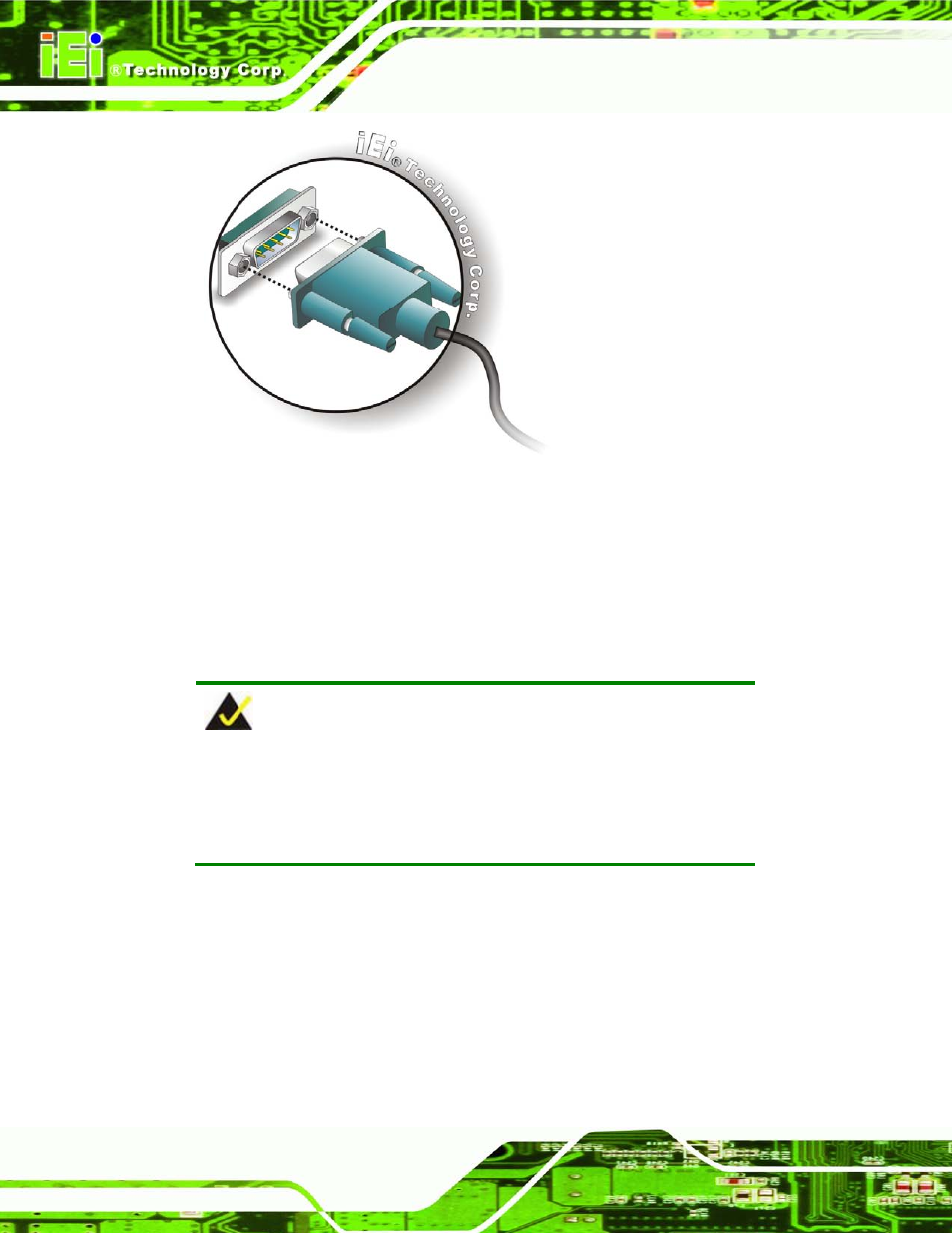

Figure 3-8: DB-9 Serial Port Connector

S te p 3:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

S tep 0:

3.6.4 US B De vic e Co n n e c tio n

NOTE:

User must install the USB 3.0 driver before connecting a USB device to

the system or else the system may not recognize the connected

device.

There are six USB 2.0 connectors on the ECN-360A-D2550. To connect a USB device,

please follow the instructions below.

S te p 1:

Locate the USB connectors. The locations of the USB connectors are shown

in Chapter 1.

S te p 2:

Align the connectors. Align the USB device connector with one of the

connectors on the external peripheral interface. See Figure 3-10.
