3.11.2.3 S h u td o wn

The system will shutdown in the following situations:

 Power 2 < 10.5V and Power 1 < 9V

 Press Power buttons for 6 seconds

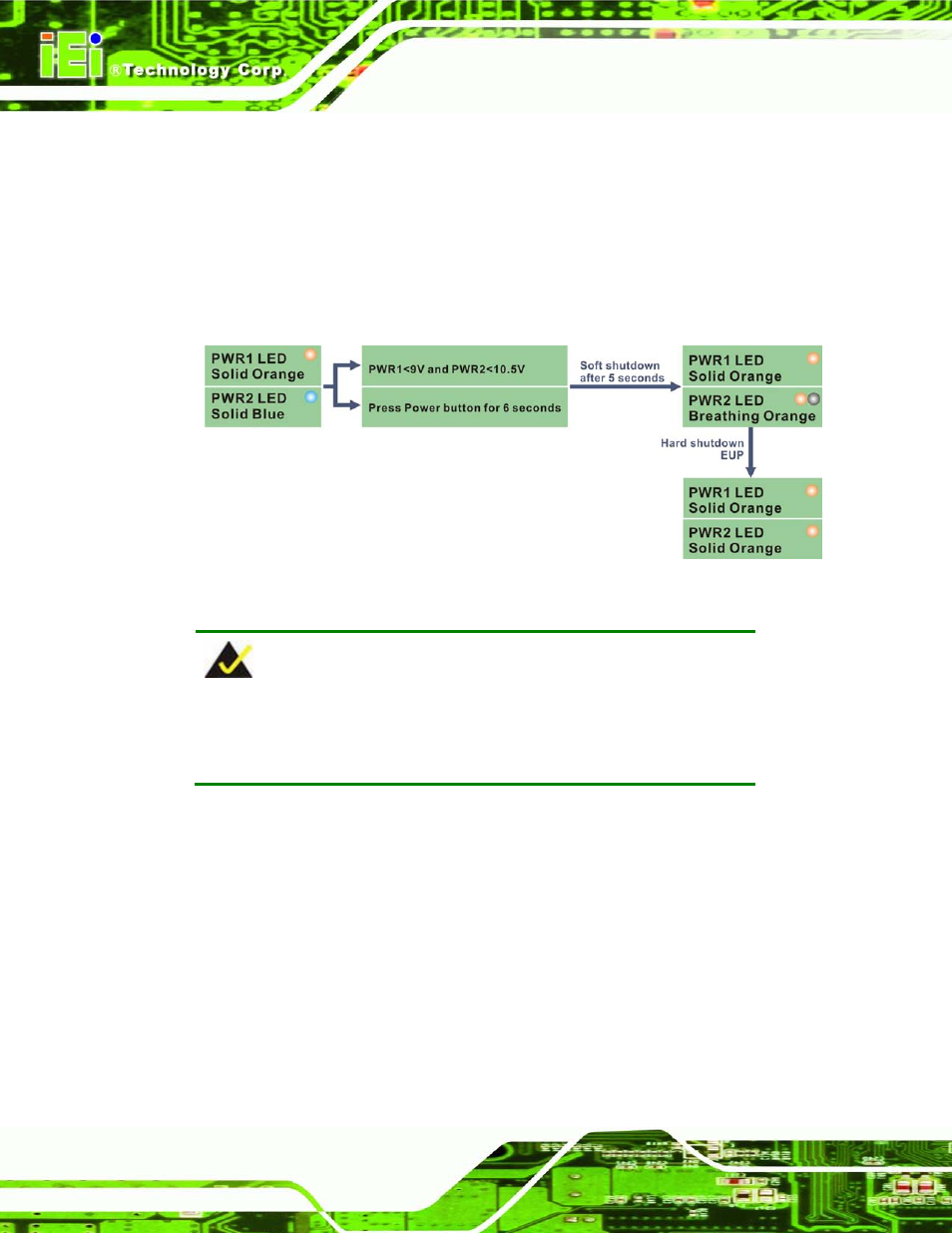

The following flow diagram shows the system shutdown process and the LED statuses.

Figure 3-42: ACC Off: Shutdown

NOTE:

The power LED turns off when the power cable is unplugged from the

system.
