TANK-700 Em b e d d e d S ys te m
P a g e 33

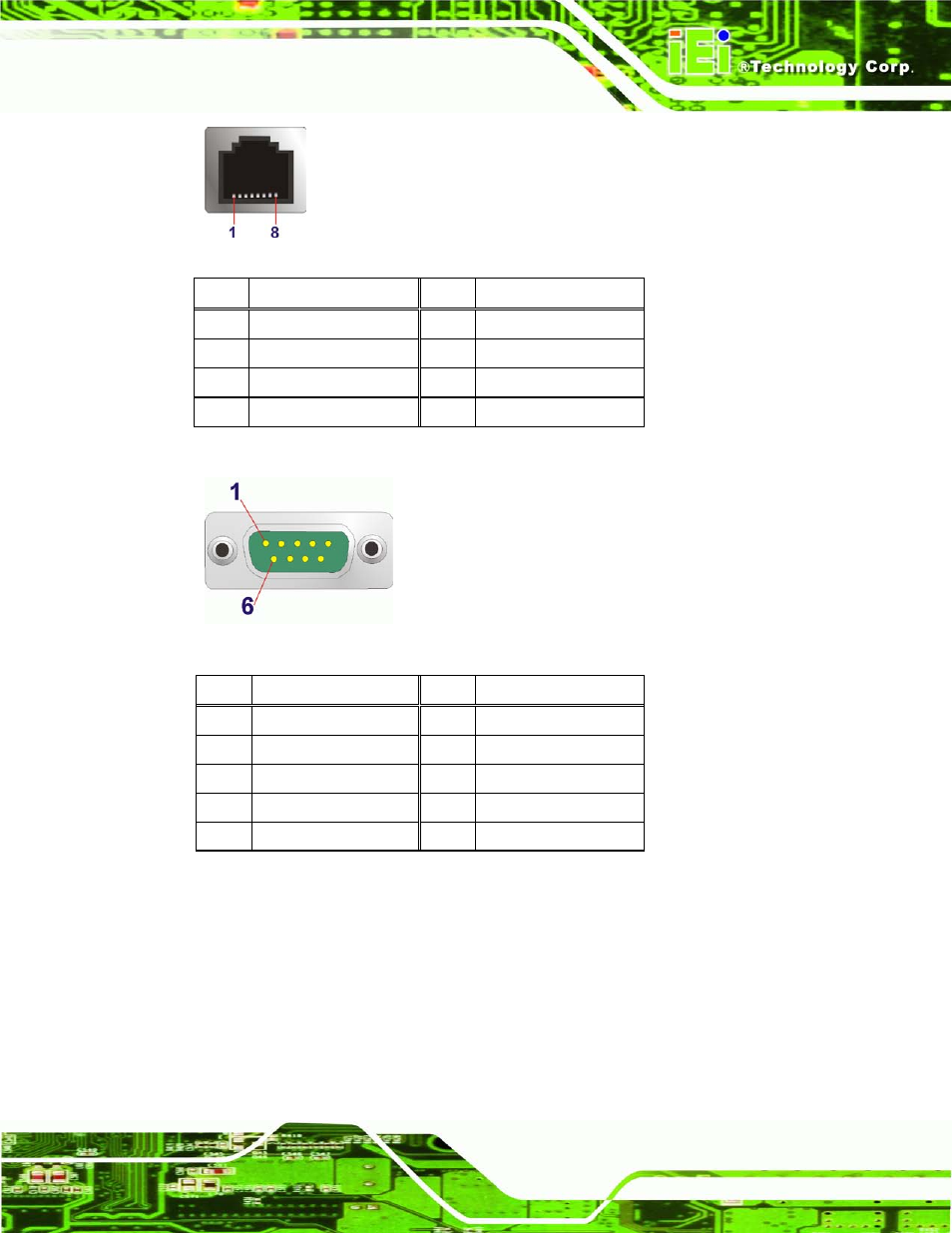

Figure 3-23: RJ-45 RS-232 Serial Port Pinout Location
Pin Description Pin Description
1 RI 5 RTS
2 DTR 6 RX
3. CTS 7 DSR
4. TX 8 DCD
Table 3-7: RJ-45 RS-232 Serial Port Pinouts
Figure 3-24: DB-9 Connector Pinout Location
Pin Description Pin Description
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
Table 3-8: DB-9 Connector Pinouts
