TANK-700 Em b e d d e d S ys te m

P a g e 39

S te p 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Figure 1-3.

S te p 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

S te p 3:

Insert the VGA connector.

Once the connectors are properly aligned with,

insert the male connector from the VGA screen cable into the female connector

on the TANK-700. See Figure 3-31.

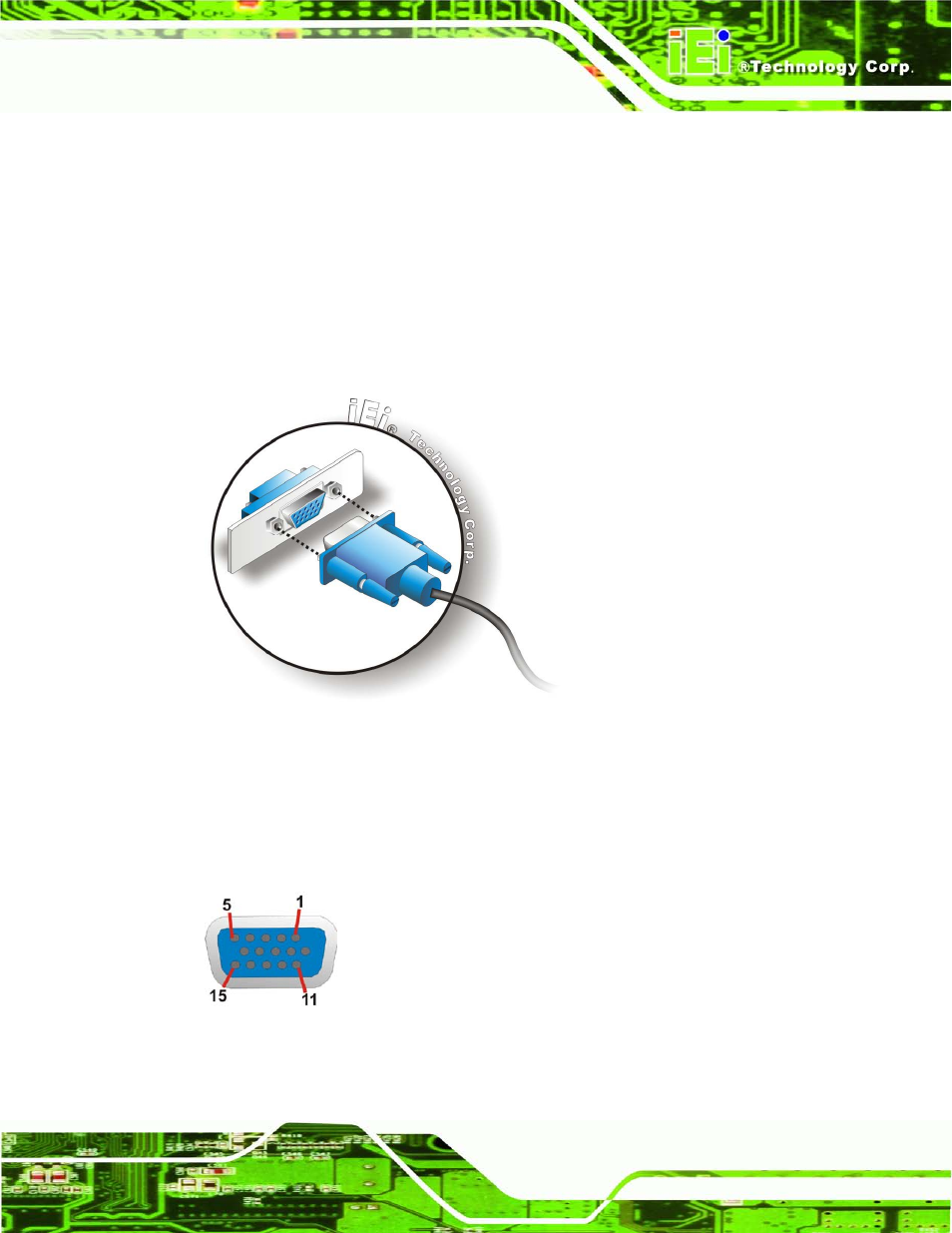

Figure 3-31: VGA Connector

S te p 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

Figure 3-32: VGA Connector
