TANK-700 Em b e d d e d S ys te m
P a g e 21

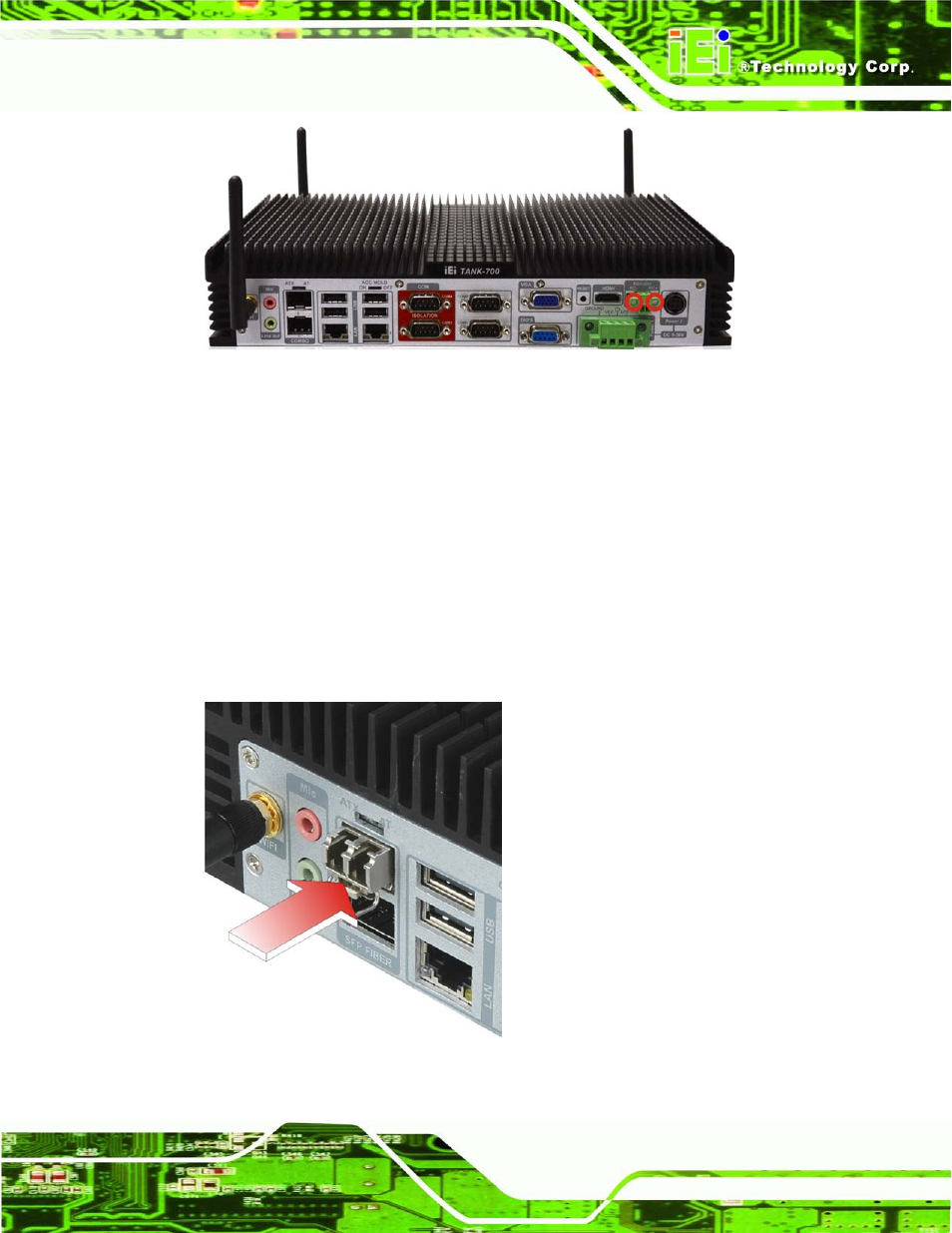

Figure 3-7: Pluggable Remote Control Terminal Block Installation
3.6 S FP Mo d u le In s ta lla tio n
To install an SFP module, please follow the steps below:
S te p 1: Locate the SFP fiber connectors. The locations of the connectors are shown in
Figure 1-3.
S te p 2: Align the SFP module with one of the SFP fiber connectors on the TANK-700
(Figure 3-8).
S te p 3: Once aligned, slide the SFP module into place (Figure 3-8).
Figure 3-8: SFP Module Installation
