TANK-700 Em b e d d e d S ys te m
P a g e 45
3.11.2.2 S witc h to Ba c ku p P o we r
During operation, system power switches from Power 2 to Power 1 automatically when the
following situations occur:
 Power 2 < 10.5V and Power 1 > 9V
 Power 2 is unplugged and Power 1 > 9V

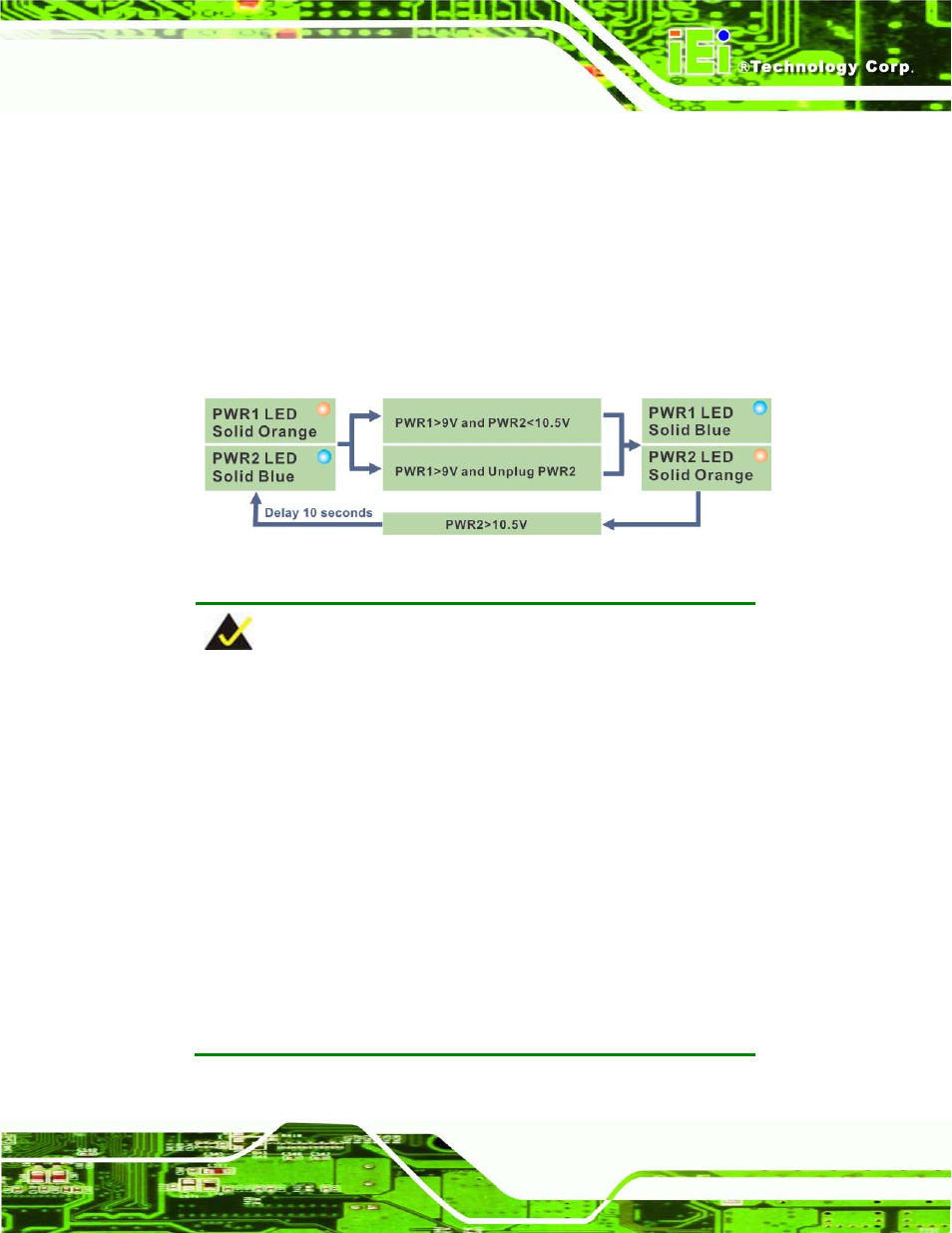

The following flow diagram shows how the power is switched between Power 2 and
Power 1 and their LED statuses.
Figure 3-41: ACC Off: Switch Between PWR1 and PWR2
NOTE:
System power can switch between Power 2 and Power 1 automatically
when a 12 V power adapter is being connected to Power 2 and the
power input of Power 1 is from 9 V to 16 V. If Power 2 is unplugged and
the power input of Power 1 is over 16 V, system power will switch to
Power 1 automatically. However, the system remains using the power
source from Power 1 even if Power 2 is re-plugged.
System power can switch between Power 2 and Power 1 automatically
when a 19 V power adapter is being connected to Power 2 and the
power input of Power 1 is from 9 V to 26 V. If Power 2 is unplugged and
the power input of Power 1 is over 26 V, system power will switch to
Power 1 automatically. However, the system remains using the power
source from Power 1 even if Power 2 is re-plugged.
