TANK-700 Em b e d d e d S ys te m

P a g e 18

S te p 3:

Attach each HDD to the HDD bracket, and then slide each HDD to connect the

SATA connectors.

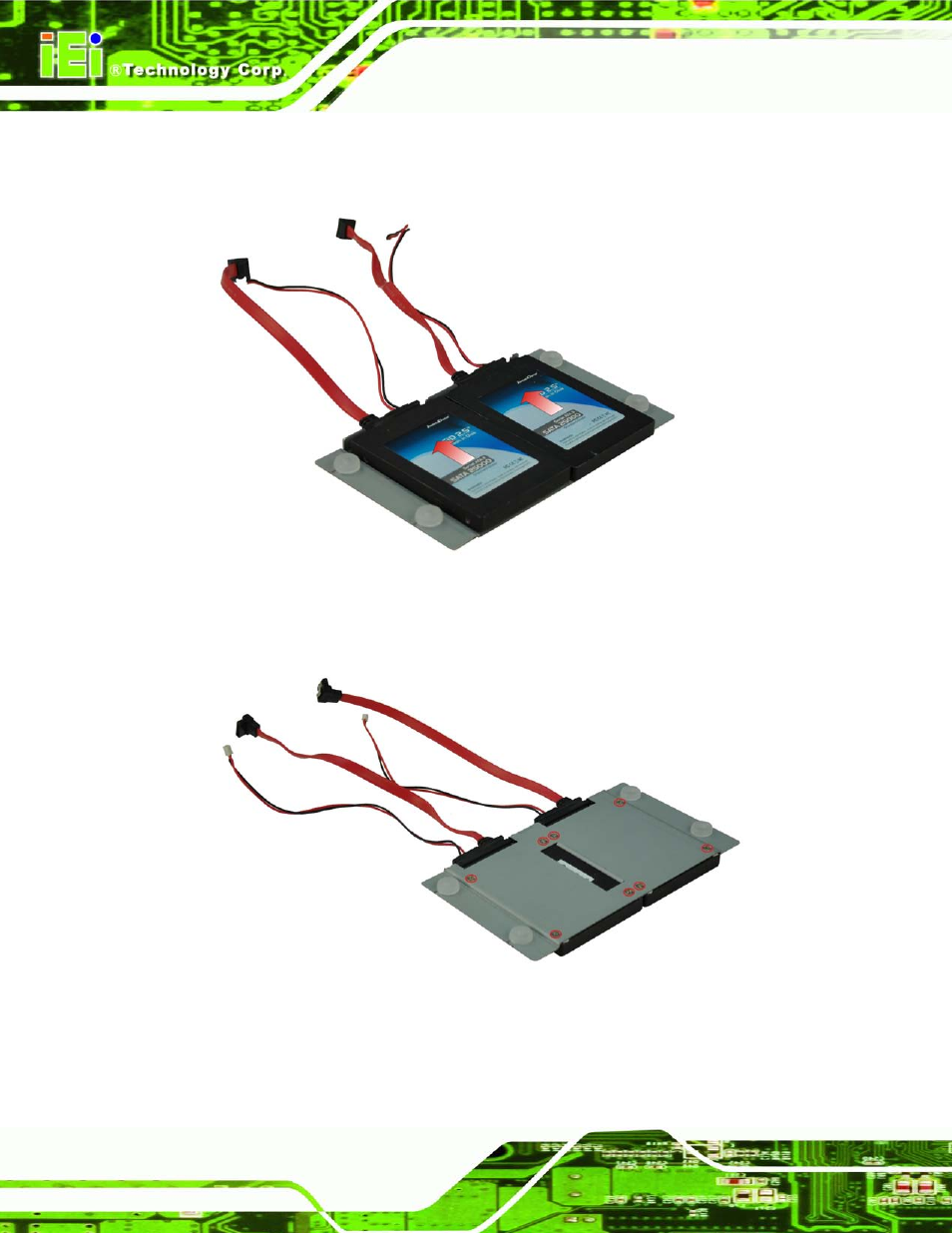

Figure 3-3: HDD Installation

S te p 4:

Secure each HDD with the HDD bracket by four retention screws (eight in all).

Figure 3-4: HDD Retention Screws

S te p 5:

Secure the HDD bracket with TANK-700 by the four retention screws that were

previously removed.
