TANK-700 Em b e d d e d S ys te m
P a g e 40
Pin Description Pin Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC / NC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-13: VGA Connector Pinouts
3.10 P o we rin g On /Off th e S ys te m
WARNING:
Make sure a power supply with the correct input voltage is being fed into
the system. Incorrect voltages applied to the system may cause damage to
the internal electronic components and may also cause injury to the user.
 Power on the system: press the power button for 3 seconds
 Power off the system: press the power button for 6 seconds

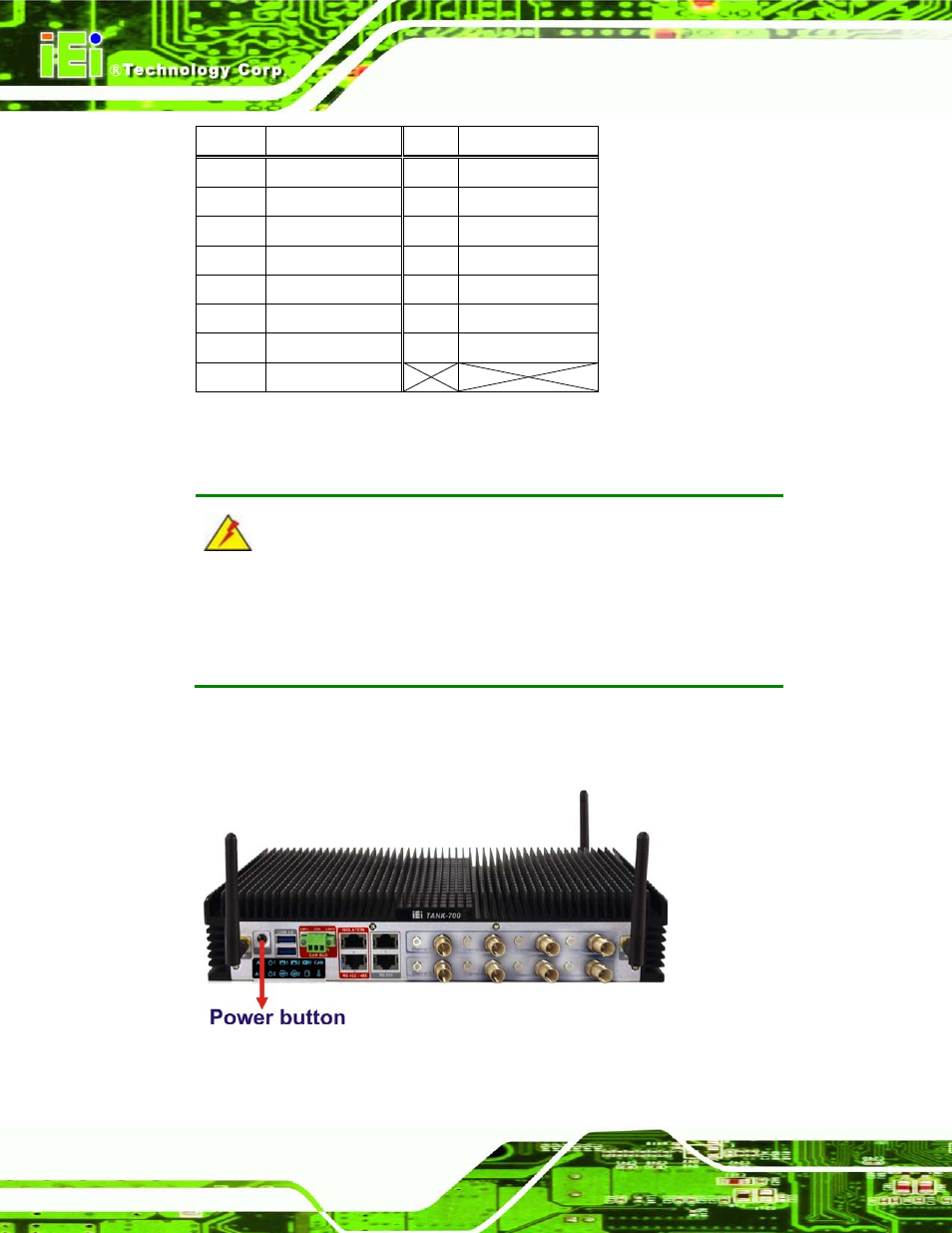

Figure 3-33: Power Button
