IMBA-H610 ATX Motherboard

Page 63

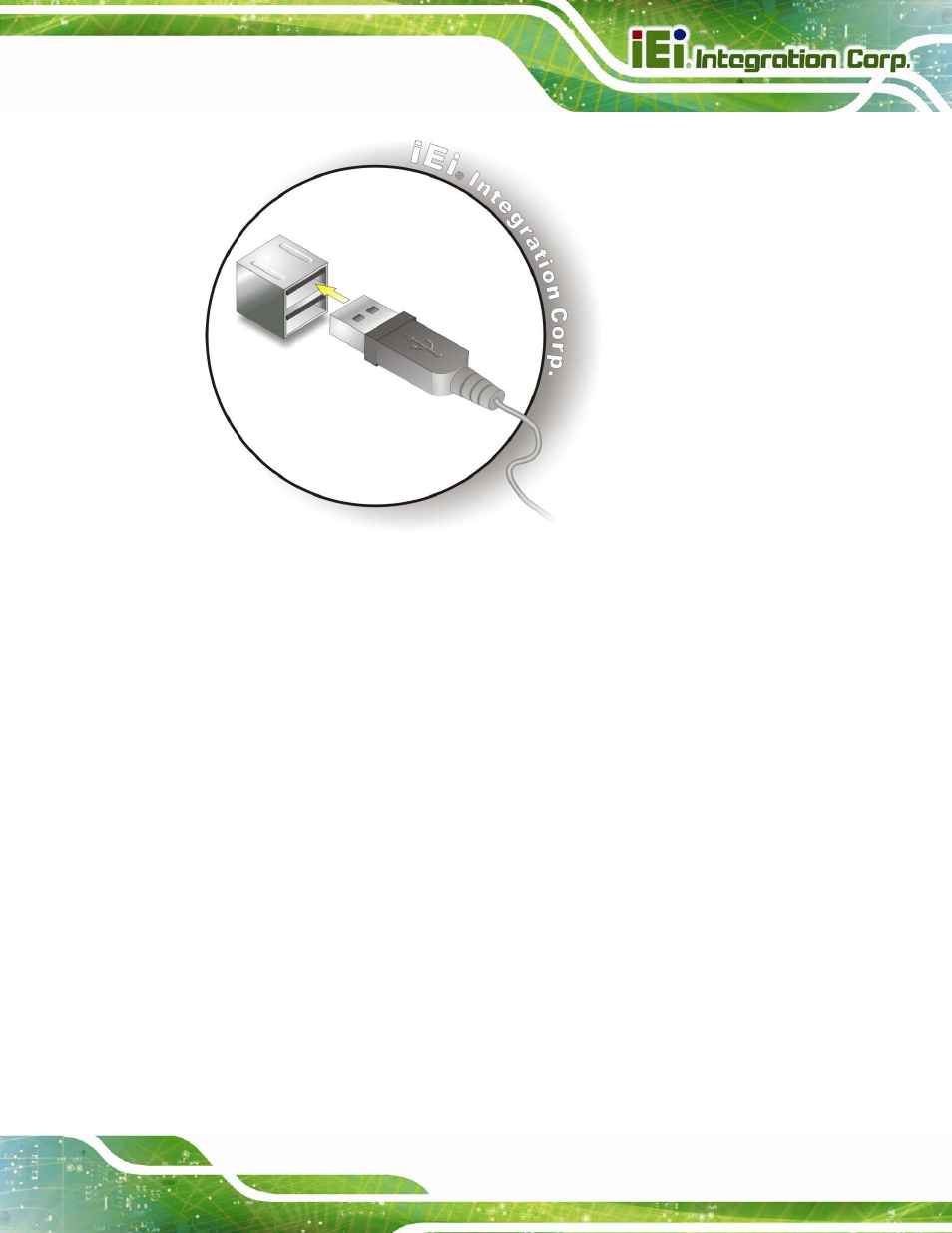

Figure 4-17: USB Connector

4.5.7 VGA Monitor Connection

The IMBA-H610 has a single female DB-15 connector on the external peripheral interface

panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor

to the IMBA-H610, please follow the instructions below.

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

IMBA-H610. See Figure 4-18.
