IMBA-H610 ATX Motherboard

Page 31

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-13

The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s

data transfer rate.

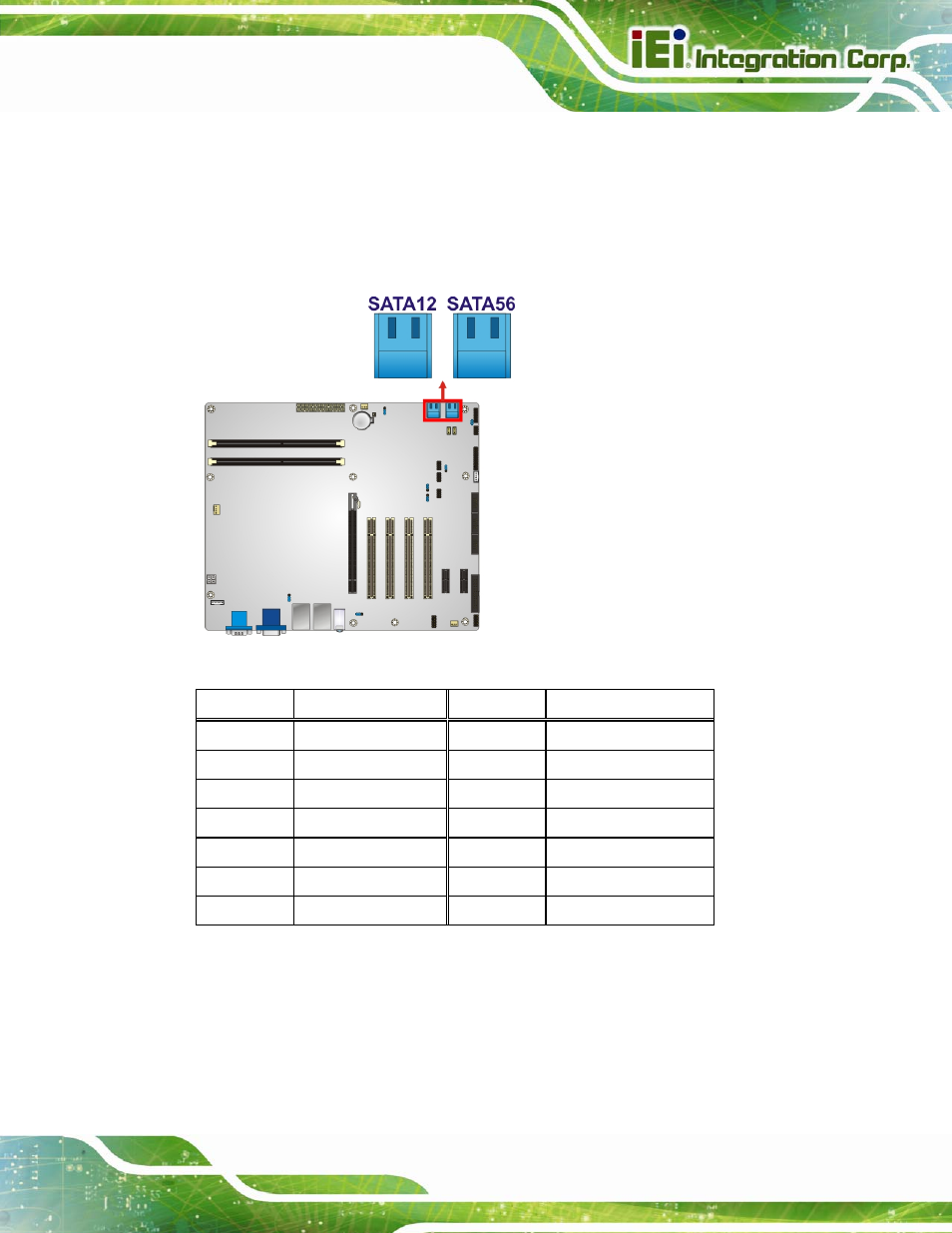

Figure 3-16: SATA 3Gb/s Drive Connector Location

Pin Description Pin Description

1 GND

8 GND

2 TXP_A

9 TXP_B

3 TXN_A

10

TXN_B

4 GND

11

GND

5 RXN_A

12

RXN_B

6 RXP_A

13

RXP_B

7 GND

14

GND

Table 3-13: SATA 3Gb/s Drive Connector Pinouts

3.2.16 Serial Port Connector, RS-422/485

CN Label:

COM4

CN Type:

4-pin wafer
