3 connectors, Onnectors, Figure 1-2: connectors – IEI Integration IMBA-H610 User Manual
Page 18
IMBA-H610 ATX Motherboard
Page 3
Three internal RS-232 serial port connectors
One internal RS-422/485 serial port connector
Two Realtek PCIe Gigabit Ethernet connectors (LAN1 with ASF 2.0 support)
Four SATA 3Gb/s connectors
High
Definition
Audio
RoHS
compliant
1.3 Connectors

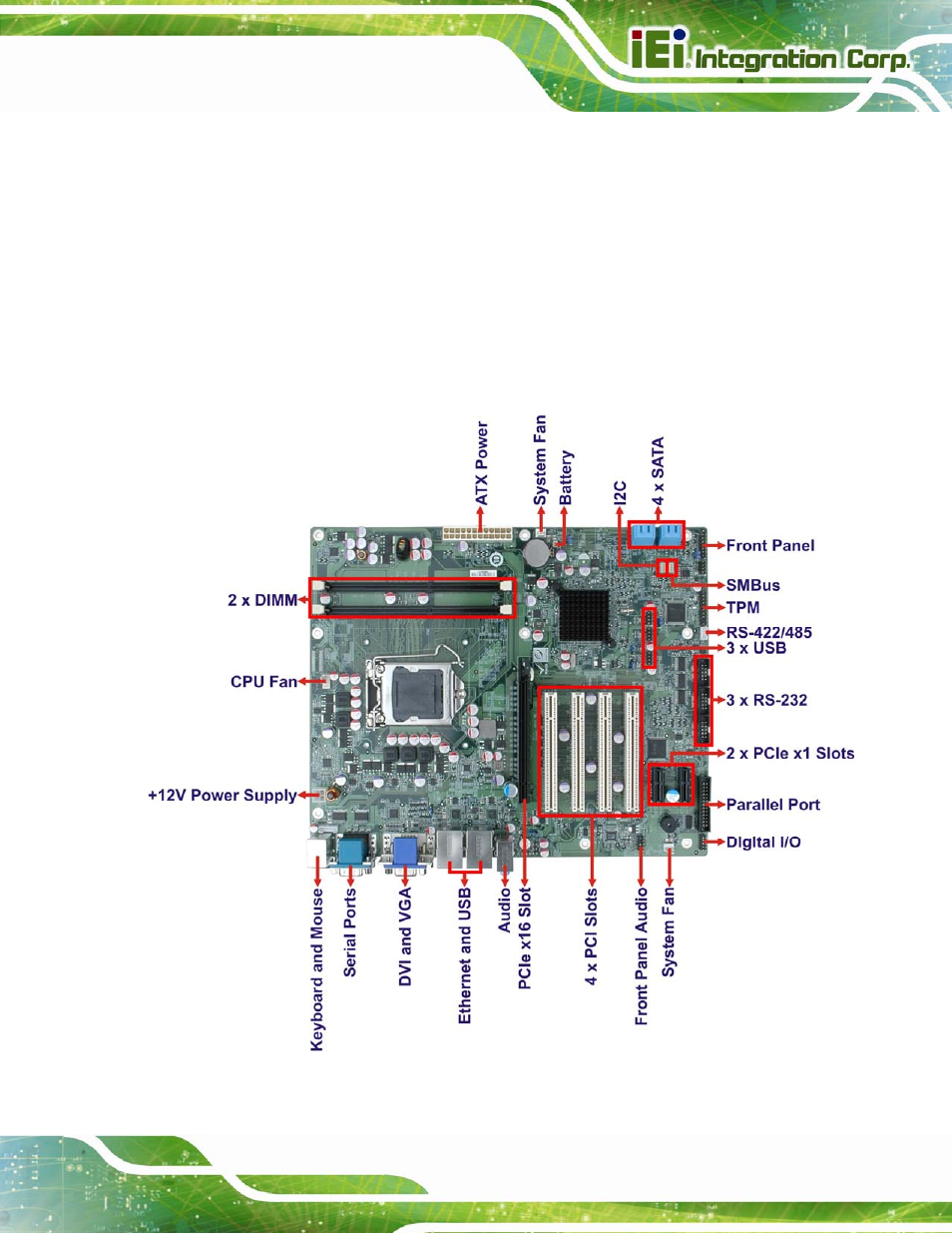

The connectors on the IMBA-H610 are shown in the figure below.
Figure 1-2: Connectors
