IMBA-H610 ATX Motherboard
Page 42
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VGAVCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-27: VGA Connector Pinouts

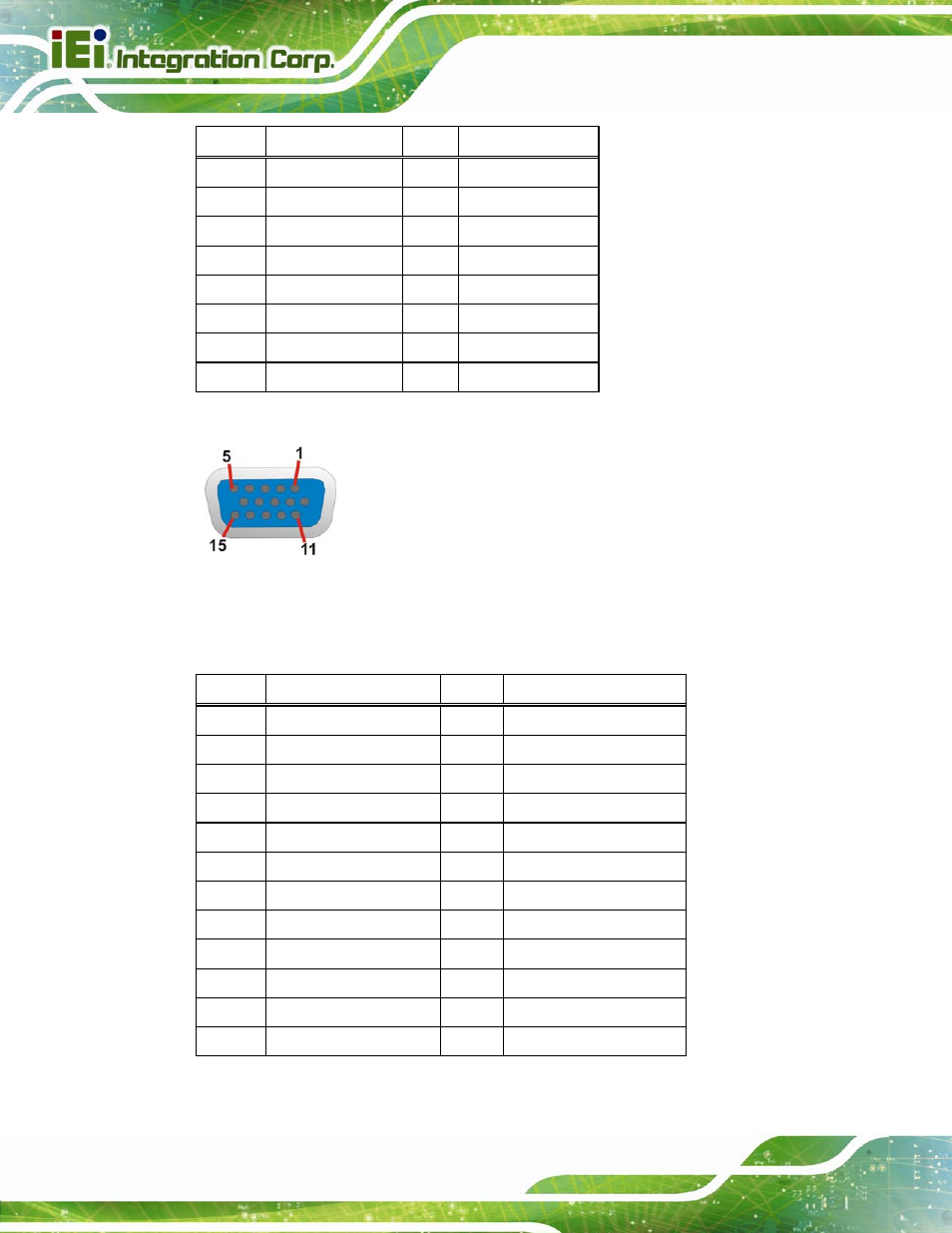

Figure 3-28: VGA Connector
The DVI connector connects to a monitor that supports DVI video input.
PIN DESCRIPTION PIN DESCRIPTION
1 DVI_DATA2#_C 2 DVI_DATA2_C
3 GND 4 NC
5 NC 6 DVI_SCL
7 DVI_SDA 8 NC
9 DVI_DATA1#_C 10 DVI_DATA1_C
11 GND 12 NC
13 NC 14 +5V
15 GND 16 DVI_HPD
17 DVI_DATA0#_C 18 DVI_DATA0_C
19 GND 20 NC
21 NC 22 GND
23 DVI_CLK_C 24 DVI_CLK#_C
Table 3-28: DVI Connector Pinouts
