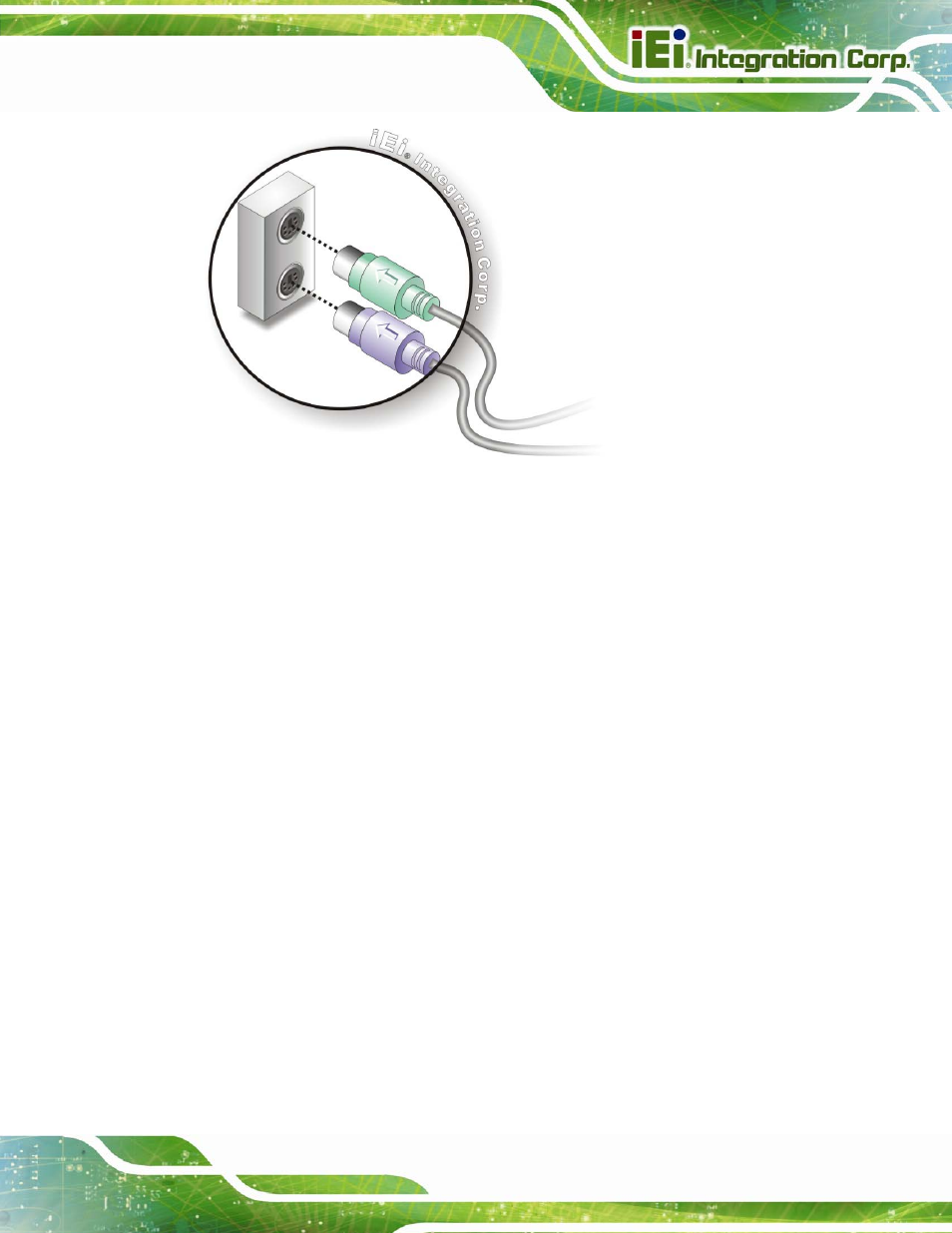

Figure 4-15: PS/2 Keyboard/Mouse Connector

4.5.5 Serial Device Connection

The IMBA-H610 has two female DB-9 connectors on the external peripheral interface

panel for two serial devices. Follow the steps below to connect a serial device to the

IMBA-H610.

Step 1:

Locate the DB-9 connector. The locations of the DB-9 connectors are shown

in Chapter 3.

Step 2:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-16.
