IMBA-H610 ATX Motherboard

Page 34

The SMBus (System Management Bus) connector provides low-speed system

management communications.

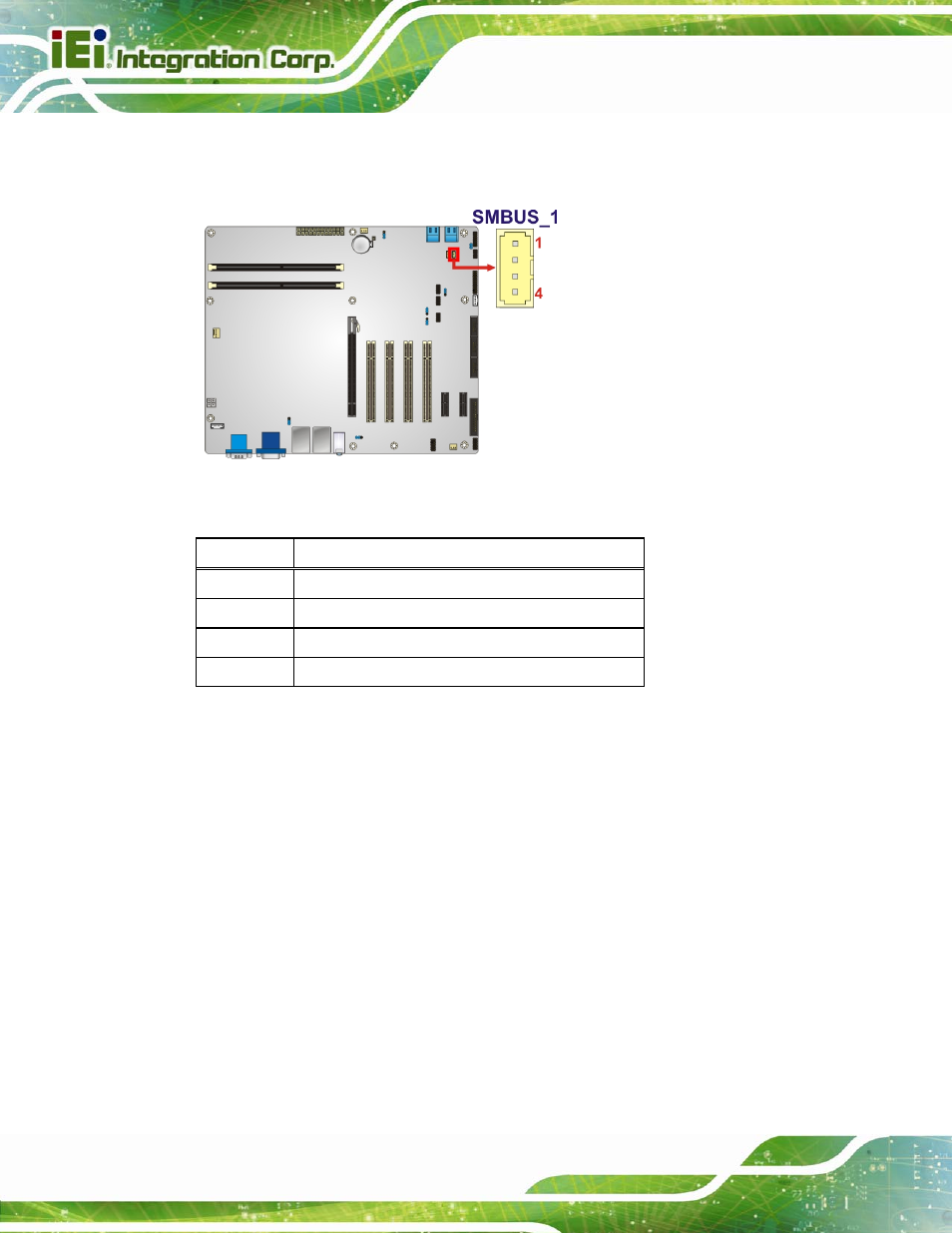

Figure 3-19: SMBus Connector Location

Pin Description

1 +5V_DUAL

2 SMBCLK

3 SMBDATA

4 GND

Table 3-17: SMBus Connector Pinouts

3.2.19 SPI ROM Connector

CN Label:

JSPI1

CN Type:

8-pin header

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-18

The SPI connector is used to flash the BIOS.
