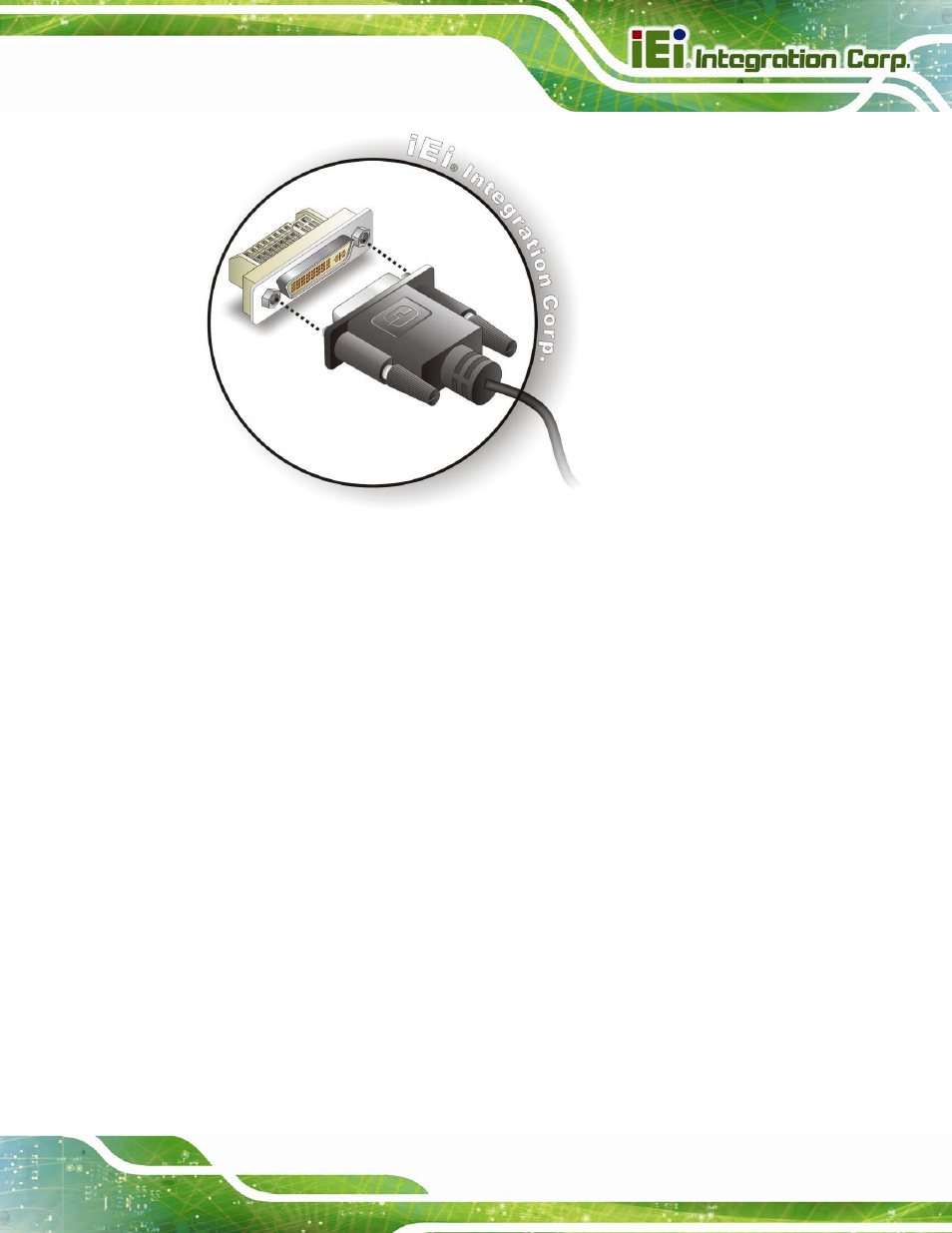

Figure 4-13: DVI Connector

Step 4:

Secure the connector. Secure the DVI-D connector from the digital display

device to the external interface by tightening the two retention screws on either

side of the connector.

Step 0:

4.5.3 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Step 1:

Locate the RJ-45 connectors. The locations of the USB connectors are shown

in Chapter 4.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the IMBA-H610. See Figure 4-14.
