IMBA-H610 ATX Motherboard

Page 37

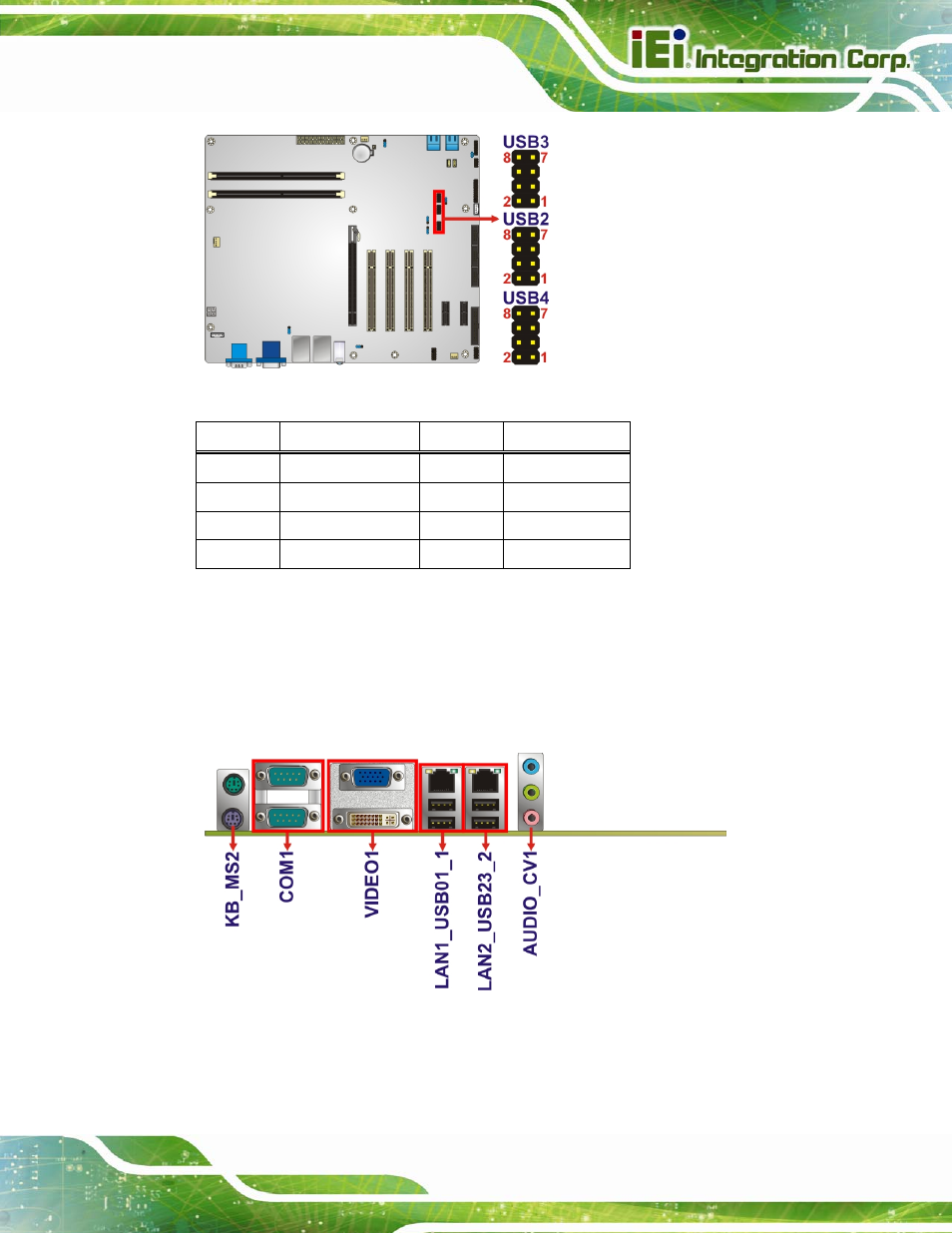

Figure 3-22: USB Connector Pinout Locations

Pin

Description

Pin

Description

1

VCC

2

GND

3

DATA-

4

DATA+

5

DATA+

6

DATA-

7

GND

8

VCC

Table 3-20: USB Port Connector Pinouts

3.3 External Peripheral Interface Connector Panel

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

Figure 3-23: External Peripheral Interface Connector
