IMBA-H610 ATX Motherboard

Page 19

Pin Description

Pin Description

1 +3.3V 13

+3.3V

2 +3.3V 14

-12V

3 GND

15

GND

4 +5V

16

PS_ON-

5 GND

17

GND

6 +5V

18

GND

7 GND

19

GND

8 NC

20

NC

9 +5V

21

+5V

10 +12V

22 +5V

11 +12V

23 +5V

12 +3.3V

24 GND

Table 3-4: ATX Power Connector Pinouts

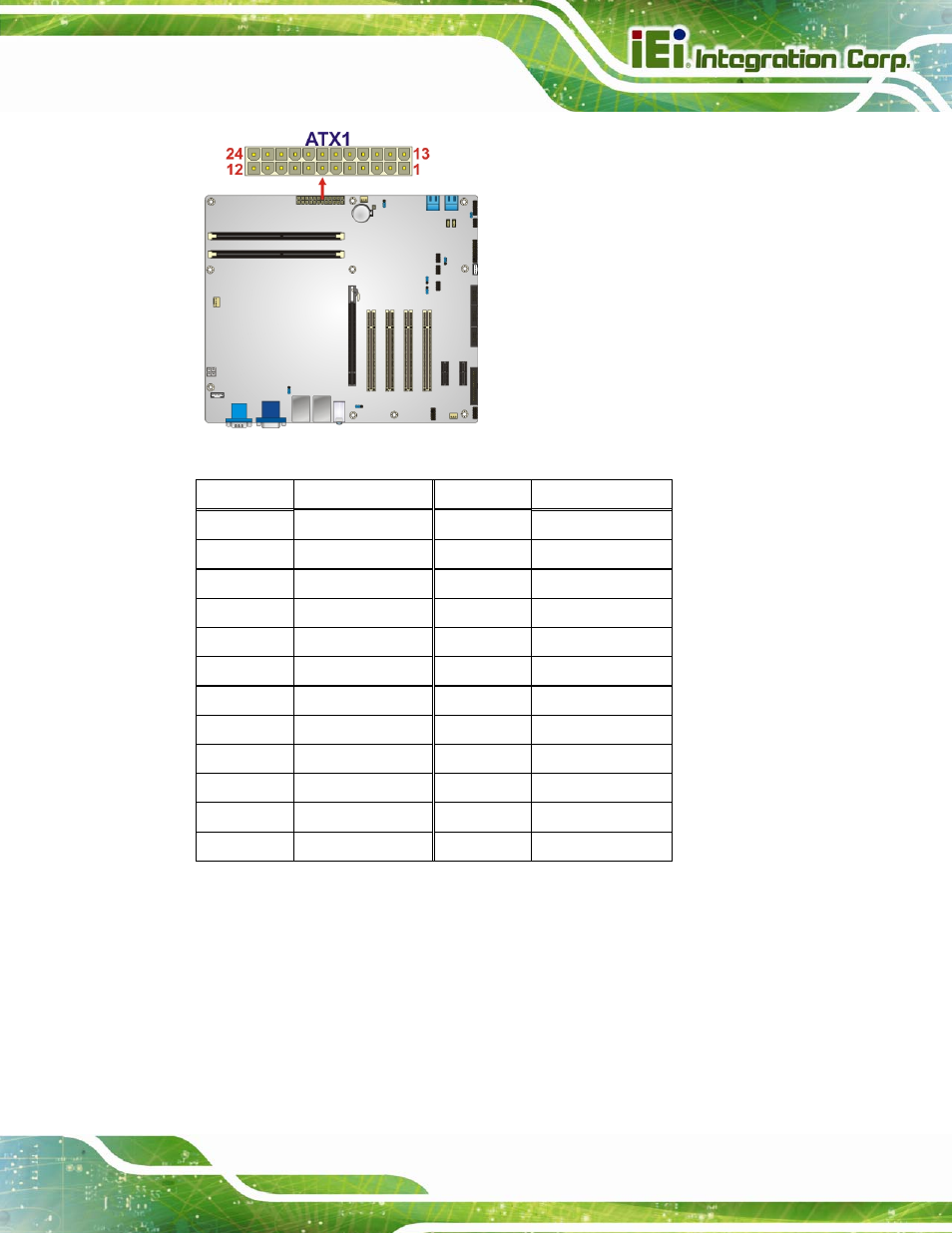

Figure 3-3: ATX Power Connector Pinout Location
